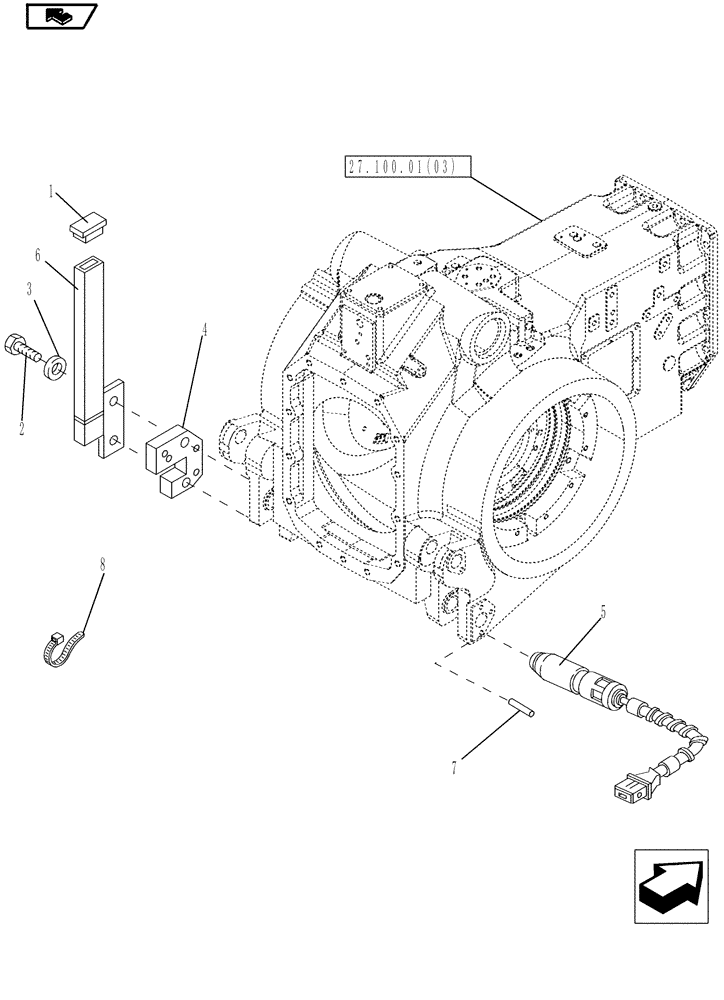

Запчасти Case IH MAGNUM 210 (35.130.04) - IMPLEMENT CARRIER, SENSOR, WITH POWERSHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

5170226

PLUG,4mm ID x 23mm L x 32.5-32.8mm W x 35x25mm, Black

2шт.

2

47134668

HEX SOC SCREW,M10 x 1.25 x 35mm

4шт.

3

47130824

LOCK WASHER,Nordlock, 10.70mm ID x 21.00mm OD x 2.50mm

4шт.

4

5191331

PLATE

2шт.

5

87661279

SENSOR

Pin Draft

2шт.

6

47125909

SHIELD

Right Hand

1шт.

6

47125908

SHIELD

Left Hand

1шт.

7

14606470

LOCK PIN,Slotted Spring, M8 x 20.00mm

2шт.

8

5112712

COLLAR,M4.8 x 283

2шт.
