Запчасти Case IH MAGNUM 210 (90.160.03) - CAB, HEADLINER, DELUXE & LUXURY TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

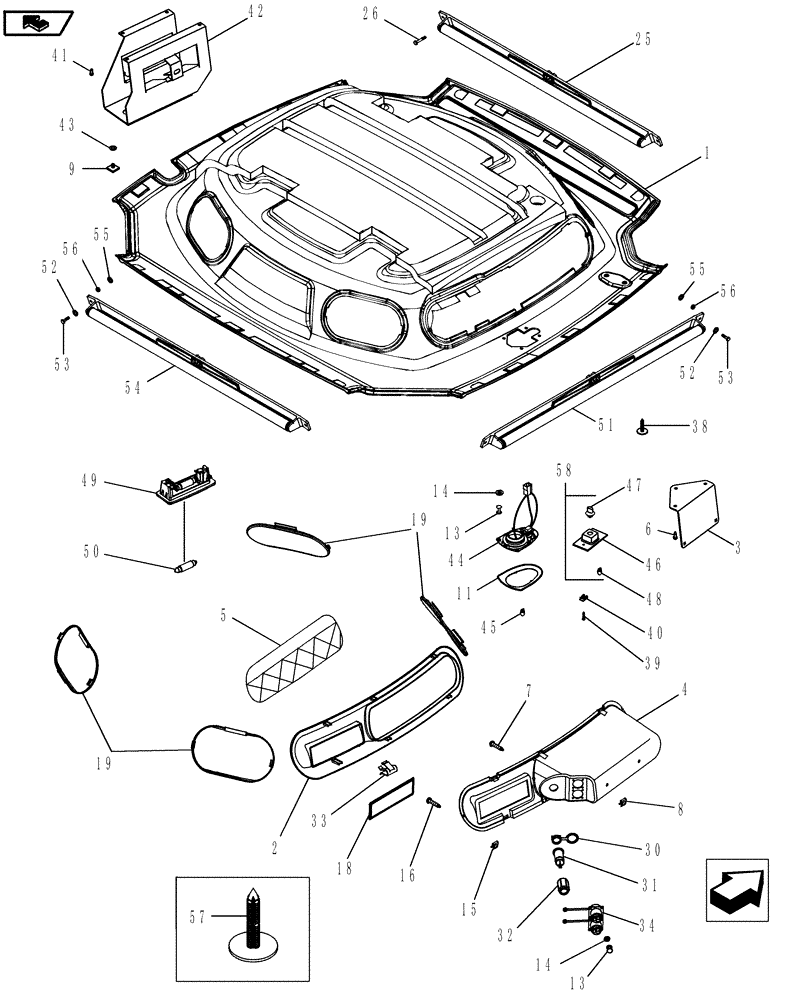

Схема запчастей Case IH MAGNUM 210 - (90.160.03) - CAB, HEADLINER, DELUXE & LUXURY TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS
55
2
34
33
home
13
52
9
19
48
53
56
26
11
51
41
30
1
52
42
50
53
54
5
47
3
16
32
13
25
7
58
14
4
8
14
43
31
39
19
55
38
56
45
44
40
15
49
18
46
6
57

Артикул

Название

Примечание

Количество

1

87427659

ROOF LINING

, Serial Range: -ZCRD04821

1шт.

1

84493164

HEADLINER,Deluxe CIH, With Bluetooth Mic Cut-out

Deluxe, Start Serial: ZCRD04822

1шт.

2

358794A2

BEZEL

1шт.

3

409205A2

BRACKET

1шт.

4

358797A1

BOX

Incl 5

1шт.

5

NSS

NOT SOLD SEPARAT

NET, Cargo, Incl in 4

1шт.

6

758-5

SELF-TAP SCREW,Hex Hd, M5.5 x 15

Use With Headliner 87614457

7шт.

6

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

Use With Headliner 84493164

7шт.

7

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

8

322072A2

FASTENER

2шт.

9

87621184

FASTENER

16шт.

11

360364A1

BEZEL

Map Light

1шт.

13

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

8шт.

14

87698771

WASHER,0.13" ID x 0.38" OD x 0.04" Thk

4шт.

15

442245A1

SPRING NUT

2шт.

16

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

18

1535219C1

COVER

Without Radio

1шт.

19

358683A1

GRILLE

Speaker Cover

4шт.

25

87668030

VISOR, SUN

Front

1шт.

26

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

2шт.

30

190812A1

COVER

1шт.

31

308904A1

CIGARETTE LIGHTER

Outlet

1шт.

32

308905A1

CIGARETTE LIGHTER

1шт.

33

308538A2

CLIP

6шт.

34

227739A2

POWER SOCKET

2шт.

38

333772A1

PLUG

4шт.

39

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

40

442244A1

SPRING NUT

2шт.

41

151-537

RIVET,Pop, 1/8" x .650"

4шт.

42

428264A5

BRACKET

Radio Mounting

1шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

44

87414959

LAMP

Inc.45

1шт.

45

373114A1

BULB

1шт.

46

NSS

NOT SOLD SEPARAT

LAMP

1шт.

47

107329C1

WIRE HARNESS

1шт.

48

D71346

TAIL LAMP,12V

1шт.

49

1983391C1

LAMP,12V, 10W

Inc. 50

1шт.

50

E35556

BULB,12V, 10W

1шт.

51

87668031

VISOR, SUN

Right Hand

1шт.

52

195-81034

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

4шт.

53

87030526

SCREW,Pan, #10 - 32 x 1"

4шт.

54

87668032

VISOR, SUN

Rear

1шт.

55

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

4шт.

56

87450324

NUT

4шт.

57

87441605

FASTENER

Plug Side and Rear Sun Visor Holes; Use With Headliner 87614457

4шт.

58

368143A1

LAMP

Inc. 46 - 48

1шт.

59

358795A1

BOX

Inc. 4, 5

1шт.

Выбрано товаров: 47
