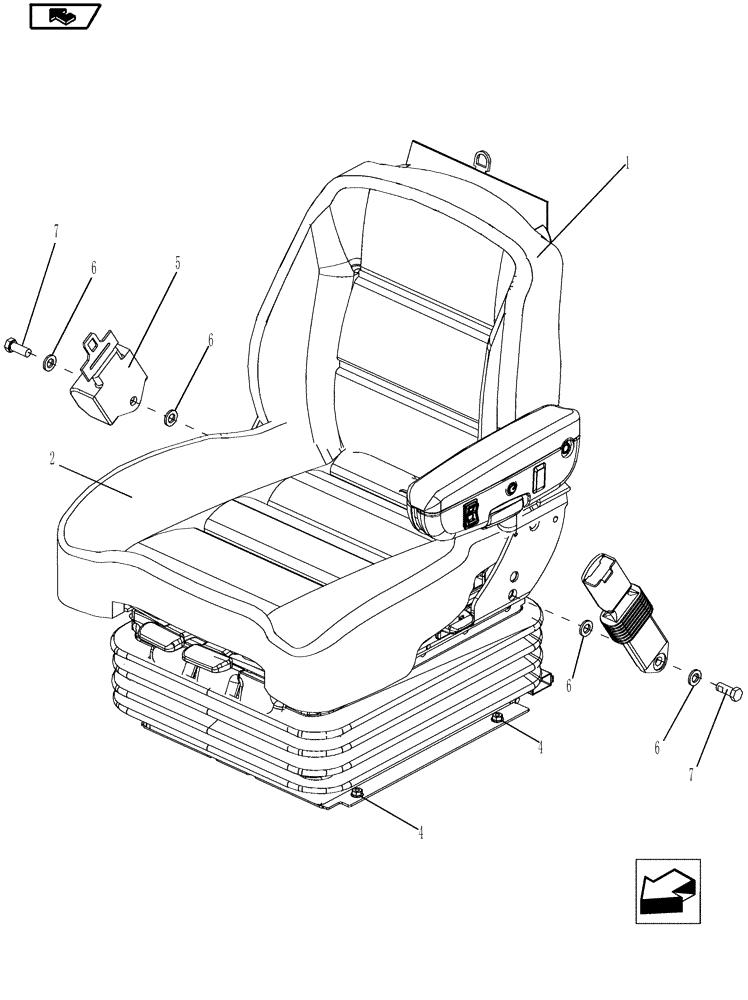

Запчасти Case IH MAGNUM 210 (90.124.01) - SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

84173143

DRIVER SEAT

Cloth with 2 Position Heat without Positive Response Suspension

1шт.

84380417

DRIVER SEAT

Cloth with 3 Position Heat without Positive Response Suspension (Not Shown)

1шт.

84173144

DRIVER SEAT

Cloth with 2 Position Heat with Positive Response Suspension

1шт.

84380421

DRIVER SEAT

Cloth with 3 Position Heat with Positive Response Suspension (Not Shown)

1шт.

84173145

DRIVER SEAT

Leather with 3 Position Heat with Positive Response Suspension

1шт.

84380450

DRIVER SEAT

Leather with 3 Position Heat with Positive Response Suspension (Not Shown)

1шт.

1

87758231

CUSHION

BACK, 2 Position heat, Cloth (Wheat)

1шт.

Use with Seats 84173143 and 84173144

1шт.

1

87397614

SEAT CUSHION

BACK, 3 Position heat, Leather (Red)

1шт.

Use with Seat 84173145

1шт.

1

84392254

SEAT CUSHION

BACK, Leather, Luxury

1шт.

Use with Seat 84380450

1шт.

2

84173147

SEAT CUSHION

SEAT, 2 Position heat, Cloth (Wheat)

1шт.

Use with Seats 84173143 and 84173144

1шт.

2

84173149

SEAT CUSHION

SEAT, 3 Position heat, Leather (Red)

1шт.

Use with Seat 84173145

1шт.

2

84392250

SEAT CUSHION

SEAT, Leather, Luxury

1шт.

Use with Seat 84380450

1шт.

3

84155868

SERVICE KIT

SUSPENSION, Without Positive Response Suspension

1шт.

Use with Seat 84173143

1шт.

3

84162213

SERVICE KIT

SUSPENSION, With Positive Response Suspension

1шт.

Use with Seats 84173144 and 84173145

1шт.

3

84406040

SERVICE KIT

SUSPENSION, Luxury

1шт.

Use with Seat 84380450

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

2шт.
