Запчасти Case IH MAGNUM 210 (90.116.02[02]) - FENDERS, REAR, WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

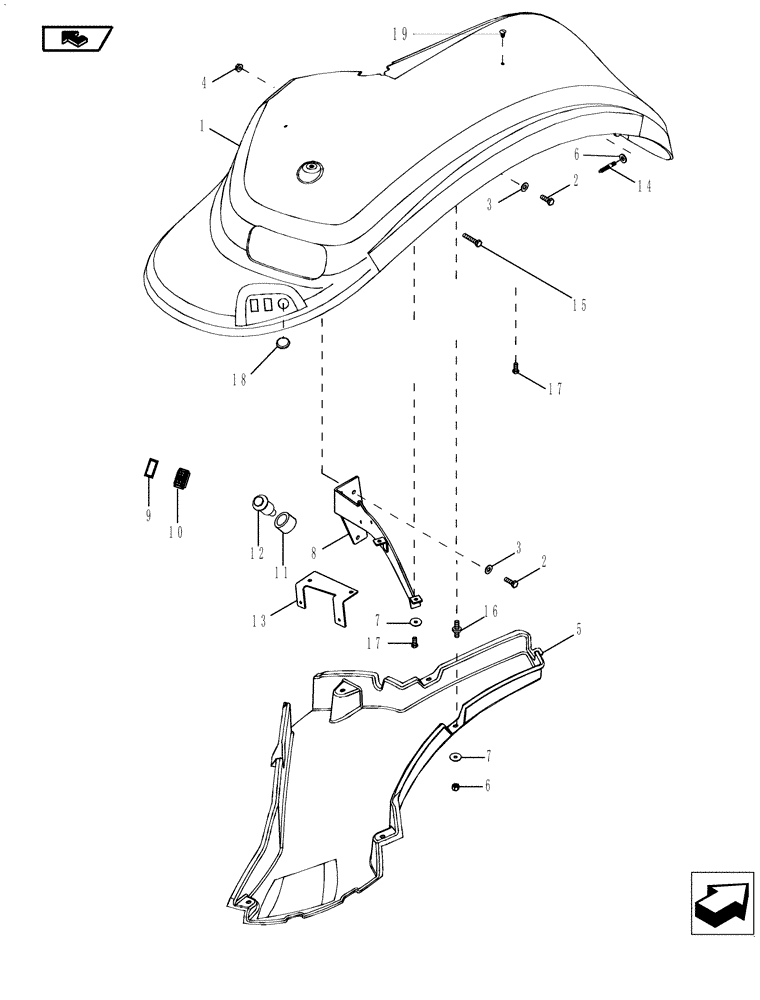

Схема запчастей Case IH MAGNUM 210 - (90.116.02[02]) - FENDERS, REAR, WIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
11
6
9
16
15
19
6
12
8
7
10
2
5
1
7
17
3
14
17
2
3
13
home
18

Артикул

Название

Примечание

Количество

1

87703701

FENDER

Right Hand, (Shown)

1шт.

1

87703704

FENDER

Left Hand

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

10шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

14шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

10шт.

5

87710353

COVER

Right Hand, (Shown)

1шт.

5

87703709

COVER

Left Hand

1шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

20шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

24шт.

8

87710393

SUPPORT

Right Hand, (Shown)

1шт.

8

87703723

SUPPORT

Left Hand

1шт.

9

82022763

PLUG

Without Hitch Switch

2шт.

10

87452577

SWITCH

Remote Hitch, UP/Down

2шт.

11

82013932

GUARD

PTO Remote Switch

2шт.

12

82025543

PTO SWITCH

Remote PTO

1шт.

13

87739798

BRACKET

Right Hand, (Shown)

1шт.

13

87739799

BRACKET

Left Hand

1шт.

14

87477361

STUD

2шт.

15

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

16

84322608

STUD

Right Hand, (Shown)

20шт.

17

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

10шт.

18

82031549

BLANK-OFF PLUG,35mm OD, Black

PTO Switch

2шт.

19

87529297

CLIP

1шт.

Выбрано товаров: 23
