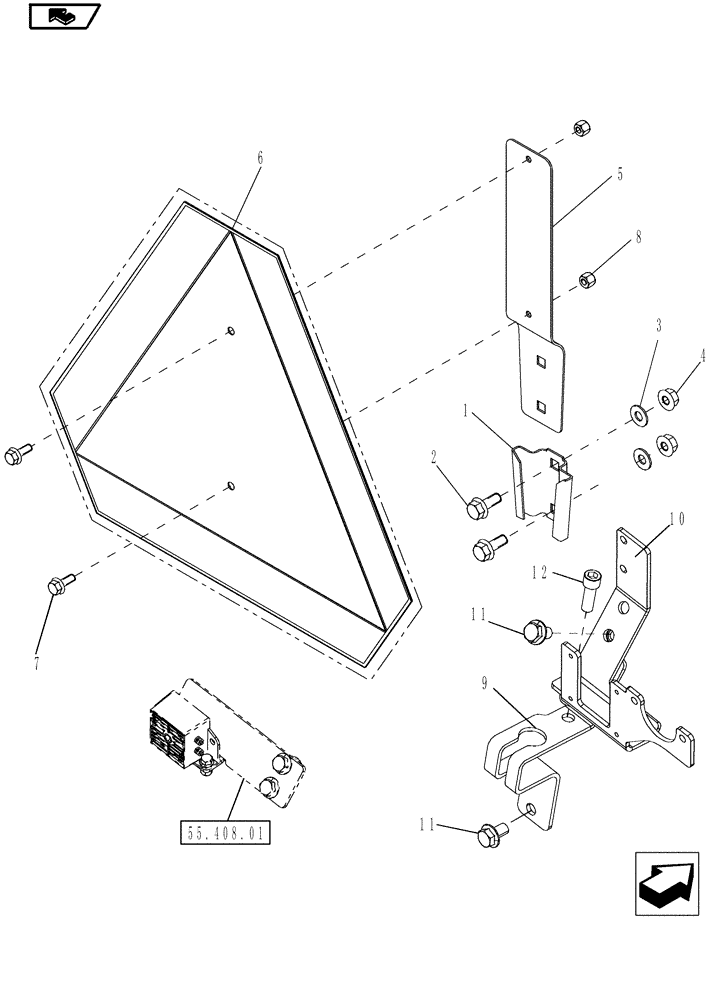

Запчасти Case IH MAGNUM 210 (90.108.01[01]) - SMV MOUNT & BRACKET (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

847590

BRACKET

Mounting

1шт.

2

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

5

195035

SUPPORT

Spade Mount

1шт.

6

87308105

WARNING TRIANGLE

SMV with Plastic Backing Plate

1шт.

7

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

84145597

BRACKET

Top Link

1шт.

10

84161587

BRACKET

SMV Mounting

1шт.

11

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

2шт.

12

14422121

HEX SOC SCREW,M12 x 35mm, Cl 8.8, Full Thd

1шт.
