Запчасти Case IH MAGNUM 210 (05.100.03[01]) - FILTERS, MAGNUM 210 - TIER 4A (05) - SERVICE & MAINTENANCE

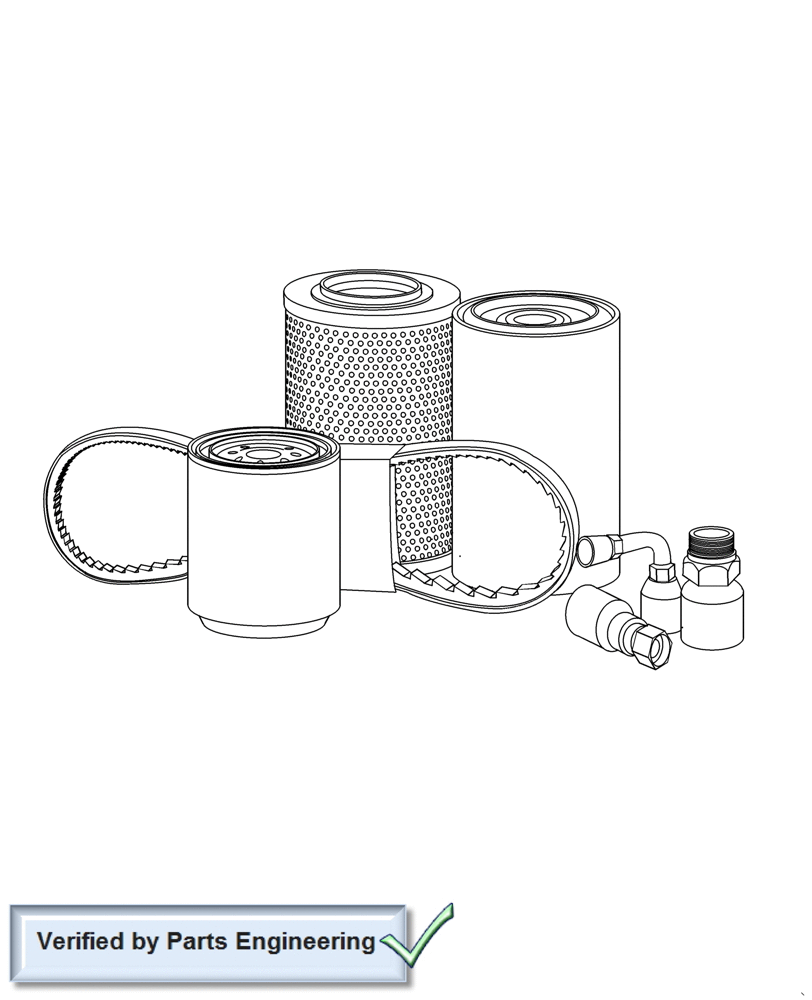

Схема запчастей Case IH MAGNUM 210 - (05.100.03[01]) - FILTERS, MAGNUM 210 - TIER 4A (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

2

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Engine, Secondary

1шт.

3

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Engine, Primary

1шт.

4

87304662

BREATHER

Engine

1шт.

5

87684088

CAB FILTER,CAB

Cab

1шт.

6

87267363

AIR FILTER,Cab Charcoal Recirculation

Cab Air, Charcoal

1шт.

7

293615A1

FILTER

Recirculation

2шт.

8

47617638

FILTER

Hydraulic Oil, Kit, Powershift & CVT

1шт.

9

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

Powershift Transmisison

1шт.

10

84417139

ELEMENT,267.5mm L, 11 Micron

Hydraulic Suction, Charge Pump, CVT

1шт.

At 50 hours service with 84417137 Filter Bowl, 84417139 Element, and 84550359 O-Ring. After that, service with 84417139 Element, and 84550359 O-Ring.

1шт.

11

87588814

HYDRAULIC OIL FILTER,151mm L

Vane Pump, CVT

1шт.

12

84254852

FILTER

Denox2 Urea Module

1шт.

13

84247272

FILTER,In-Line

DEF In Line

1шт.

14

87433010

BREATHER

Fuel

1шт.

15

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Engine Mounted

1шт.

16

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Tank Mounted

1шт.

17

336430A1

FUEL FILTER

Auxiliary Separator, 30 Micron Fuel Strainer

1шт.

Выбрано товаров: 18
