Запчасти Case IH MAGNUM 210 (55.100.12) - ELECTRIC SYSTEM CONTROL, WITH POWERSHIFT TRANSMISSION (55) - ELECTRICAL SYSTEMS

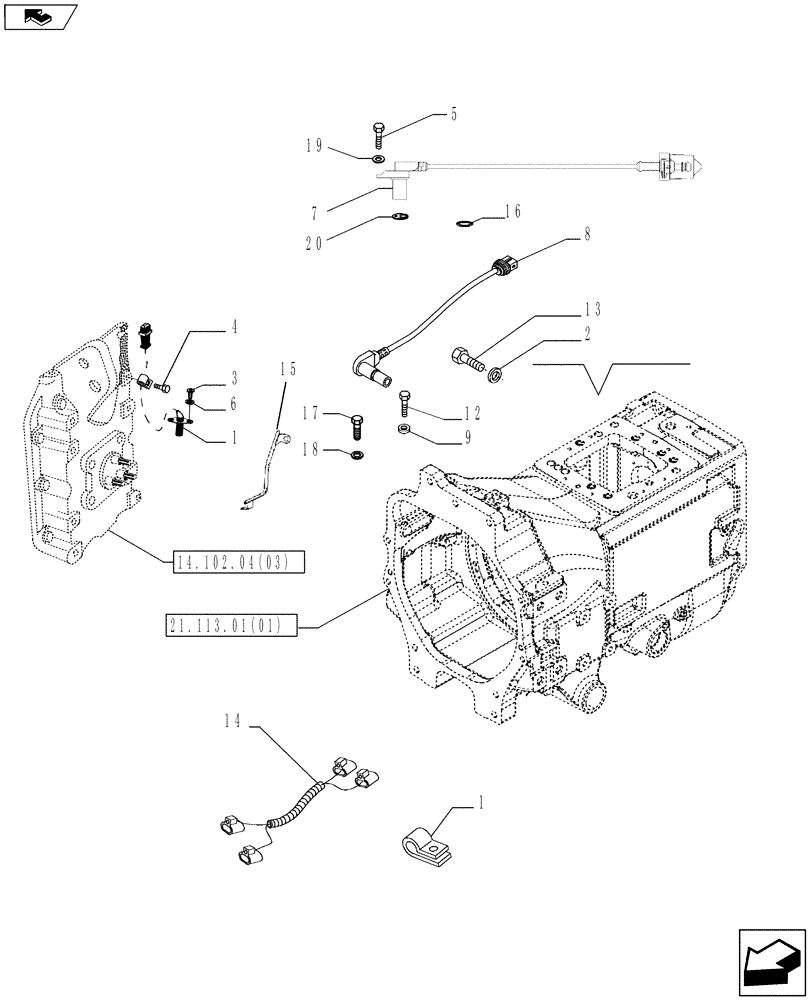

Схема запчастей Case IH MAGNUM 210 - (55.100.12) - ELECTRIC SYSTEM CONTROL, WITH POWERSHIFT TRANSMISSION (55) - ELECTRICAL SYSTEMS
5
21.113.01(01)
home
14.102.04(03)
13
18
14
3
16
6
4
20
12
7
1
8
17
19
10
15
2
9

Артикул

Название

Примечание

Количество

1

81866030

CLIP

2шт.

2

12605271

WASHER

2шт.

3

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

4

16207524

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

6

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

7

84169162

SENSOR

Speed, Hall Effect, Rotational, Length 27.9 mm

1шт.

8

87564761

SENSOR

Speed, length 56 mm

3шт.

9

12605379

LOCK WASHER

3шт.

10

87586073

SENSOR

PTO Speed, STD

1шт.

11

82851791

PLUG

(Not Shown)

1шт.

12

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

5шт.

13

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

14

87386975

WIRE HARNESS

HPL Pump (Closed Ctr)

1шт.

15

87624045

TUBE

PTO Wire Protection Channel

1шт.

16

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.

17

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

18

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

19

10615476

LOCK WASHER,Ext Tooth, M6

1шт.

20

87498777

SPACER

1шт.

Выбрано товаров: 20
