Запчасти Case IH MAGNUM 210 (50.200.09) - AIR CONDITIONING, COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL

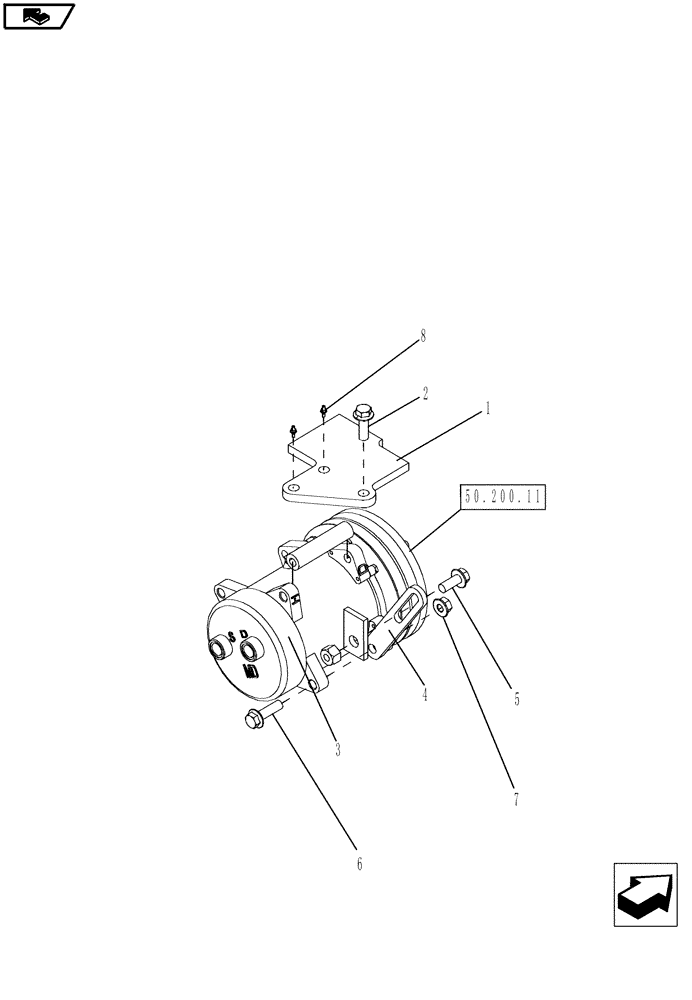

Схема запчастей Case IH MAGNUM 210 - (50.200.09) - AIR CONDITIONING, COMPRESSOR MOUNTING (50) - CAB CLIMATE CONTROL
home
50.200.11
8
6
4
2
3
5
1
7

Артикул

Название

Примечание

Количество

1

84170869

BRACKET

1шт.

2

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

1шт.

3

86993462

AIRCOND. COMPRESSOR

1шт.

3

86993462GV

AIRCOND. COMPRESSOR

Value

1шт.

86993462R

REMAN-COMPRESSOR

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225 all TIER 4 - ZARH06086 AND AFTER

1шт.

86993462C

CORE-COMPRESSOR

Return Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

48017123C

REMAN-A/C COMP KIT

Return Number

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET, Adjustment

1шт.

5

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

1шт.

6

854-10035

BOLT,Hvy Hex, M10 x 35mm, Cl 10.9

1шт.

7

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

8

84196964

STUD

2шт.

Выбрано товаров: 13
