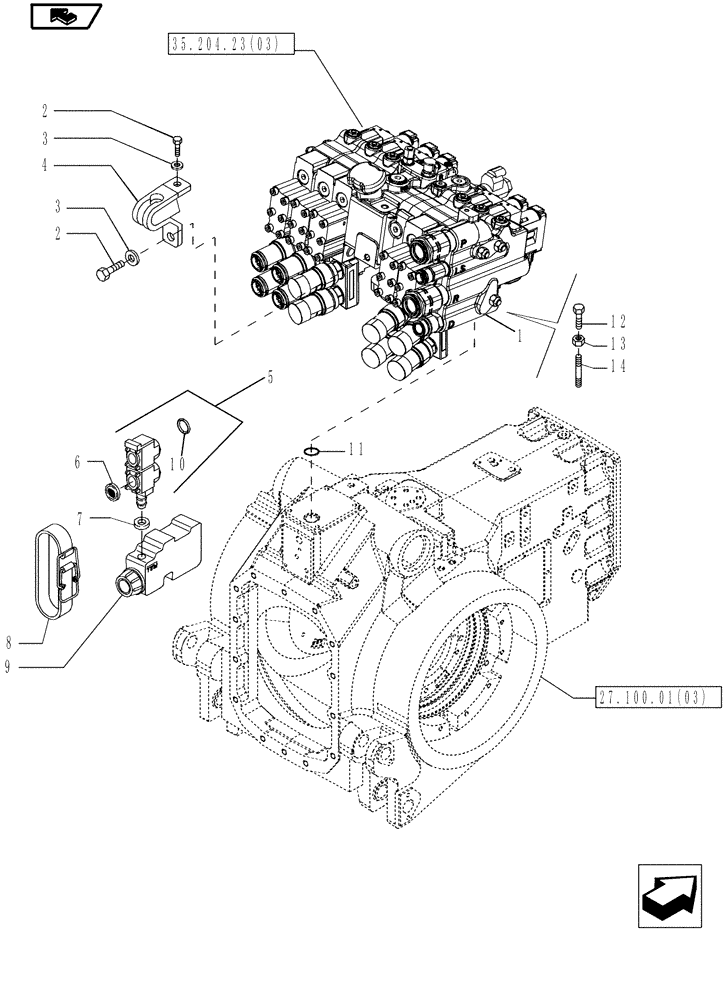

Запчасти Case IH MAGNUM 210 (35.700.01[03]) - REMOTE VALVE SPILLAGE COLLECTION WITH 5 ELEMENTS, WITH POWERSHIFT TRANSMISSION (35) - HYDRAULIC SYSTEMS

1

84158332

CONTROL VALVE

5 Stack Coupler with Power Beyond, Serial Range: -ZCRH01491

1шт.

1

84534758

VALVE

, Start Serial: ZCRH01492

1шт.

1

84158430

CONTROL VALVE

5 Stack Coupler without Power Beyond, Serial Range: -ZCRH01491

1шт.

1

84534759

VALVE

, Start Serial: ZCRH01492

1шт.

2

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

4

87352315

BRACKET

1шт.

5

82033220

DUST CAP

Inc. 10

4шт.

6

82029895

DISC,20mm D, Black

10шт.

7

82029356

SEAL,20.00mm OD x 3.00mm

5шт.

8

82032061

CLIP

5шт.

9

47922580

BOTTLE

5шт.

10

14454580

O-RING,34.65mm ID x 1.78mm

(34.65 ID x 1.78 Thk)

2шт.

11

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

12

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

13

12164711

NUT,M10 x 1.25, Cl 8

2шт.

14

13449721

STUD,M10 x 1.25 x 30mm L, Cl 8.8

2шт.
