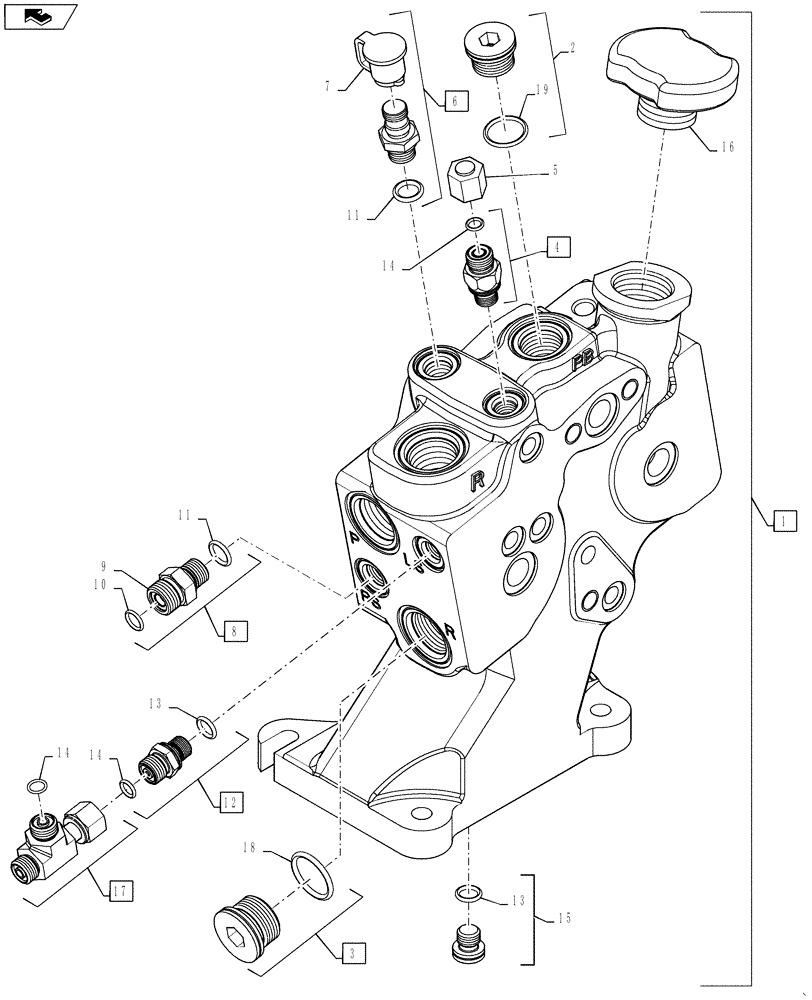

Запчасти Case IH MAGNUM 210 (35.310.01) - MANIFOLD VALVE ASSY - ASN ZCRH01492 (35) - HYDRAULIC SYSTEMS

1

84535897

MANIFOLD

Assy, In/Out; Incl. Refs. 2 - 19

1шт.

2

221579A1

PLUG,M22 x 1.5 ORB

Incl. Ref. 19

1шт.

3

221580A1

PLUG,M27 x 2 ORB

Incl. Ref. 18

1шт.

4

87551023

CHECK VALVE

Incl. Ref. 14

1шт.

5

701-917

CAP,Hex, 9/16" - 18 Female ORFS

1шт.

6

178889A1

DIAGNOSTIC COUPLER

Incl. Ref. 7, 11

1шт.

7

143349A1

DUST CAP

1шт.

8

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Incl. Refs. 9 - 11

1шт.

9

334925A1

FITTING

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

12

84174239

ORIFICE,Hex, M12 x 1.5 x 28.5mm L

Incl. Refs. 13 - 14

1шт.

13

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

15

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl. Ref. 13

1шт.

16

82005372

FILLER CAP,Male, Vented_No Lockable

1шт.

17

701-421

TEE,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. Ref. 14

1шт.

18

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

19

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
