Запчасти Case IH MAGNUM 210 (35.204.01) - REMOTE HYDRAULIC CONTROL VALVE - BSN ZCRH01492 (35) - HYDRAULIC SYSTEMS

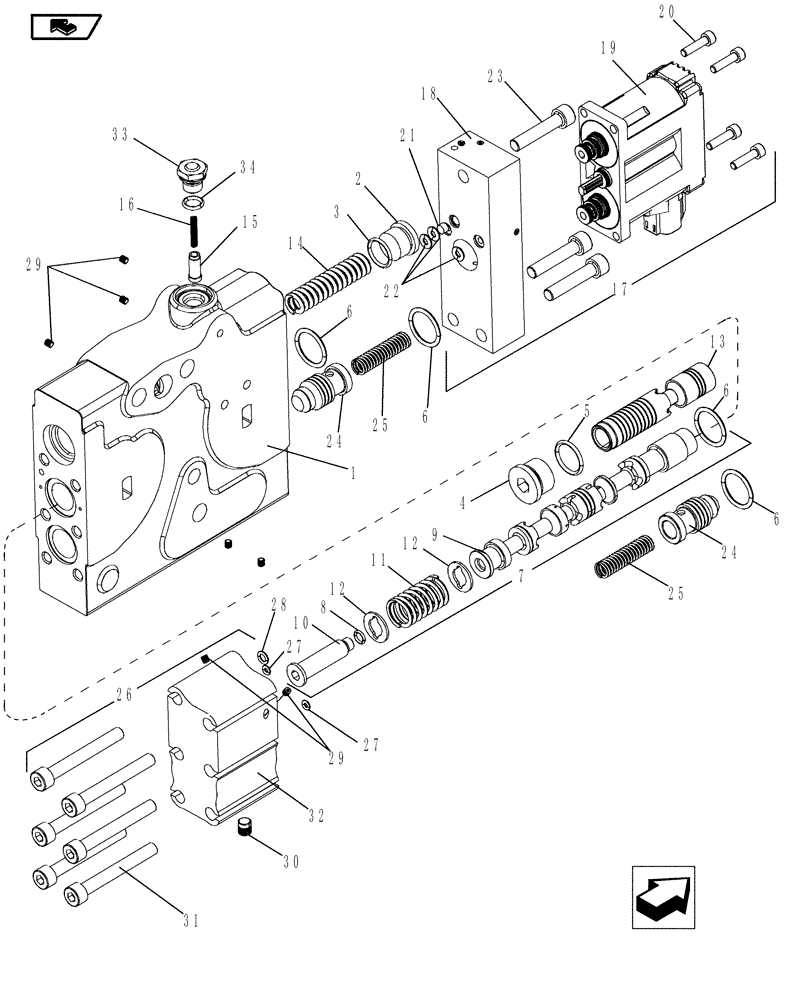

Схема запчастей Case IH MAGNUM 210 - (35.204.01) - REMOTE HYDRAULIC CONTROL VALVE - BSN ZCRH01492 (35) - HYDRAULIC SYSTEMS
17
19
29
24
6
13
8
5
12
11
27
30
3
10
16
7
25
33
26
28
34
6
29
23
14
24
20
25
12
15
31
2
22
6
32
18
1
21
9
6
home
4
27

Артикул

Название

Примечание

Количество

1

87325955

HYD VALVE SECTION

ASSY, Main, Inc. 2 - 34

1шт.

1

87325955R

REMAN-HYD VALVE

MAGNUM 180,MAGNUM 190,MAGNUM 210,MAGNUM 225,All TIER 4 ZARH06086 AND AFTER,BSN ZCRH01492

1шт.

1

87325955C

CORE-VALVE HYD

Return Number

1шт.

1

87330318

HYD VALVE SECTION

ASSY, Left, Inc. 2 - 34

1шт.

1

87330318R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225 all TIER 4, ZARH06086 AND AFTER, REMOTE HYDRAULIC CONTROL VALVE - BSN ZCRH01492

1шт.

1

87330318C

CORE-VALVE HYD

Return Number

1шт.

1

87330385

HYD VALVE SECTION

ASSY, Right, Inc. 2 - 34

1шт.

1

87330385R

REMAN-HYD VALVE

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 180, MAGNUM 190, MAGNUM 225 TIER 4 (NA) - ZARH06086 AND AFTER, REMOTE HYDRAULIC CONTROL VALVE - BSN ZCRH01492, MAGNUM 210 TIER 4 (NA) - ZARH06086 AND AFTER

1шт.

1

87330385C

CORE-VALVE HYD

Return Number

1шт.

2

218-5210

PLUG,Hex, 3/4"-16 ORB

Inc. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Inc. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

4шт.

7

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY, Inc. 8 - 12

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL, Main EH Pilot

1шт.

10

87437101

EXPANSION PLUG,Hex, 6.31mm ID x 15.5mm OD x 48.5mm L

1шт.

11

87437166

VALVE SPRING

1шт.

12

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

2шт.

13

84140373

SPOOL

1шт.

14

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

15

87648631

PIN,8mm OD x 19mm L

1шт.

16

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

17

84139664

PILOT VALVE

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK, Assembly Solenoid Adapter Plate

1шт.

19

NSS

NOT SOLD SEPARAT

VALVE, Assembly Pilot Head w/Offset

1шт.

20

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

21

87714123

FILTER

1шт.

22

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

23

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

24

84317307

POPPET

Main Lock Check

2шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

26

87329482

VALVE BODY

Inc. 27 - 32

1шт.

27

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

28

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

29

84579020

PLUG,1.81" - 2.75"

Expansion, 4mm

2шт.

30

282839A1

PLUG,8mm OD x 8.5mm L

Expansion

1шт.

31

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

32

NSS

NOT SOLD SEPARAT

BODY

1шт.

33

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Inc. 34

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

369263A1

PLUG,6mm OD x 4mm L

Expansion, 4mm; (Not Shown)

2шт.

Выбрано товаров: 43
