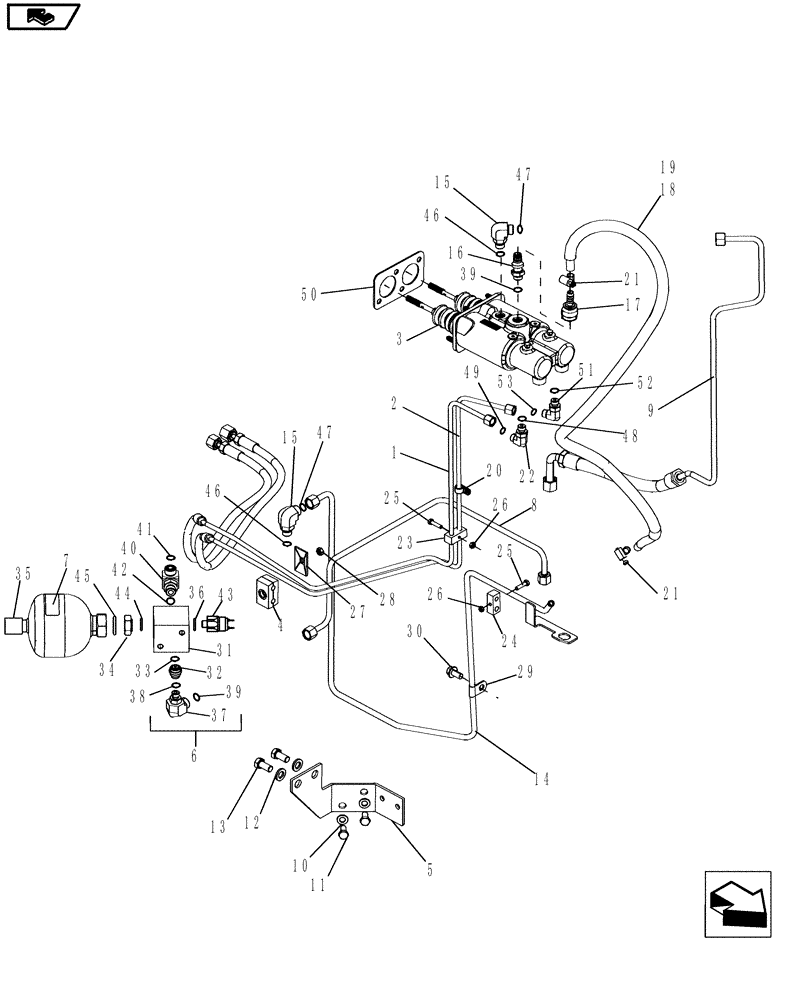

Запчасти Case IH MAGNUM 210 (33.202.05) - BRAKES, HYDRAULIC SYSTEM WITH POWERSHIFT TRANSMISSION (33) - BRAKES & CONTROLS

1

84207592

HYD TUBE,0.312" OD

Right Hand Brake

1шт.

2

84207591

HYD TUBE,0.312" OD

Left Hand Brake

1шт.

3

84152139

BRAKE VALVE

Master Cylinder with Booster

1шт.

3

84152139R

REMAN-HYD VALVE

Reman Master Cylinder with Booster

1шт.

3

84152139C

CORE-VALVE HYD

Core Return Number

1шт.

4

87473704

CLAMP

1шт.

5

84157285

BRACKET

Brake Accumulator

1шт.

6

87351567

BRAKE BOOSTER

Accumulator Block Assembly, Inc. 31 - 45

1шт.

7

82029752

DECAL

Warning

1шт.

8

87746684

TUBE,.375" OD

1шт.

9

84128605

HOSE

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

11

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

14

84126440

TUBE

1шт.

15

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Inc. 46 - 47

2шт.

16

82029114

FITTING,M16 x 1.5 x 51mm L

Inc. 39

1шт.

17

87695284

END FITTING

1шт.

18

87404885

FUEL HOSE,9.53 mm ID x 1250.00 mm

1шт.

19

87443587

CONDUIT

1шт.

20

87495305

CLAMP,65mm, Coat, 8.7mm Bolt Hole, P Type

, Serial Range: Accumulator-Brake

1шт.

22

84390791

90 ELBOW

Inc. 48 - 49

1шт.

23

87755266

CLAMP

1шт.

24

87755267

CLAMP

1шт.

25

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

27

87473705

COVER PLATE

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

29

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Inc. 50

1шт.

31

5199762

BLOCK

Block, Inc. 32 - 33

1шт.

32

NSS

NOT SOLD SEPARAT

FITTING

1шт.

33

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

34

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

35

5195043

ACCUMULATOR,0.75L

1шт.

36

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

37

5199763

HYD CONNECTOR

Inc. 38 - 39

1шт.

38

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

39

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

40

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Inc. 41 - 42

1шт.

41

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

42

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

43

87384755

SWITCH ASSY

Brake Accumulator Pressure

1шт.

44

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

45

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

46

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

47

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

48

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

49

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

50

87751579

GASKET

Brake

1шт.

51

47127165

90 ELBOW

1шт.

52

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

53

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
