(25.310.03) - DRIVE SHAFT AND SHIELD - SADDLE SUSPENSION - 5C

Запчасти Case IH MAGNUM 210 (25.310.03) - DRIVE SHAFT AND SHIELD - SADDLE SUSPENSION - 5C (25) - FRONT AXLE SYSTEM

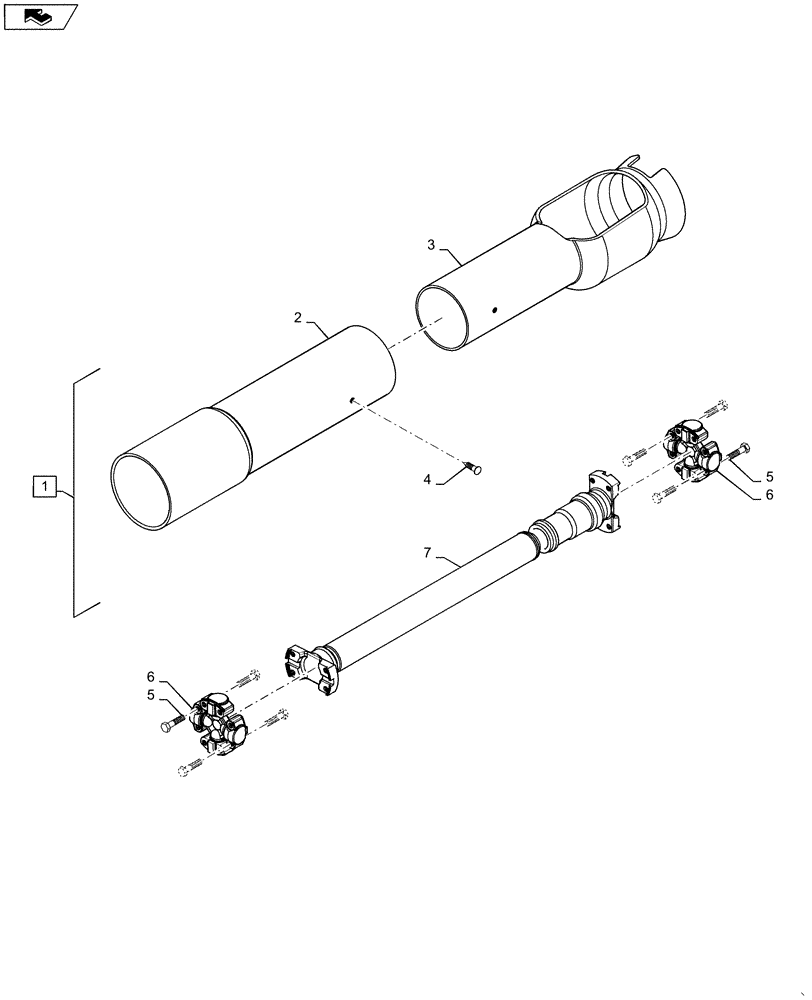

Схема запчастей Case IH MAGNUM 210 - (25.310.03) - DRIVE SHAFT AND SHIELD - SADDLE SUSPENSION - 5C (25) - FRONT AXLE SYSTEM
7
6
5
4
5
home
3
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84570896

SHIELD

Assy, Driveshaft, Saddle Suspension; Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Shield, Rear, Driveguard Outer; Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Shield, Front; Incl in 1

1шт.

4

93199C1

FASTENER

Ratchet

2шт.

5

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

6

258854A2

U-JOINT SPIDER

5C

2шт.

7

47487719

DRIVE SHAFT

5C, MFD Saddle Suspension

1шт.
