(25.122.03) - SUSPENSION CYLINDER CL 4.75

Запчасти Case IH MAGNUM 210 (25.122.03) - SUSPENSION CYLINDER CL 4.75 (25) - FRONT AXLE SYSTEM

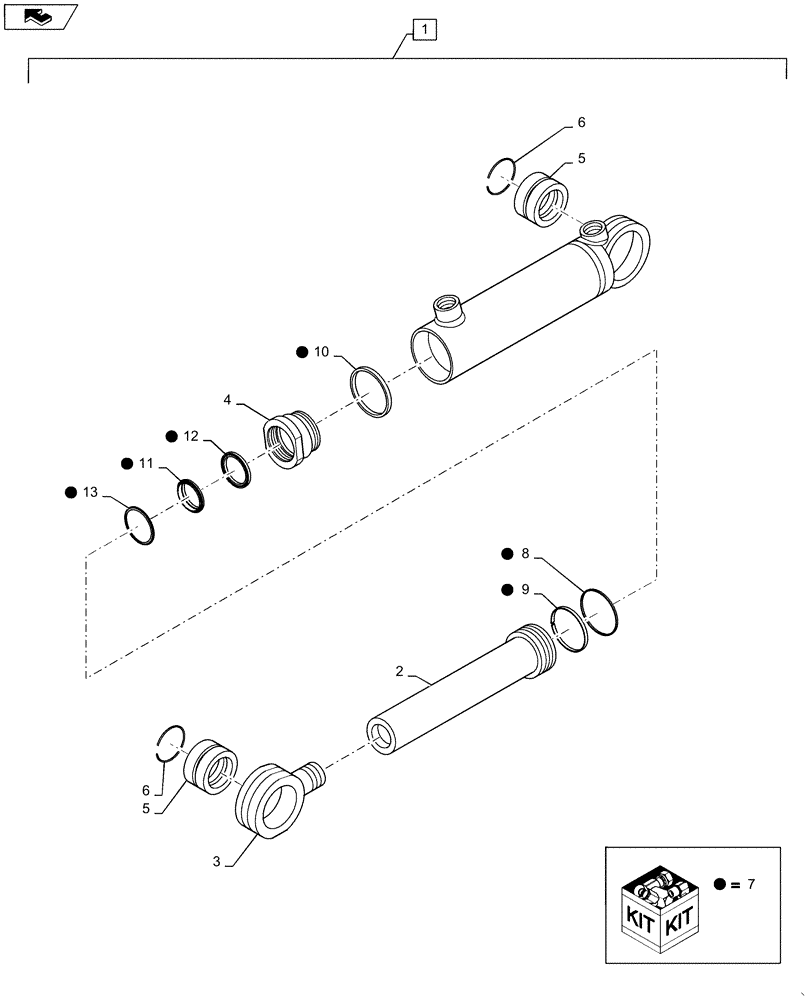

Схема запчастей Case IH MAGNUM 210 - (25.122.03) - SUSPENSION CYLINDER CL 4.75 (25) - FRONT AXLE SYSTEM
12
7
13
6
7
11
2
7
7
3
7
8
5
home
9
1
7
10
7
4
6
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84365647

HYDRAULIC CYLINDER,Double Acting, 55mm Rod, 219mm Stroke

Saddle Suspension, CL 4.75; Incl 2 - 13

1шт.

2

47496457

PISTON ROD

1шт.

3

47496459

EYE

1шт.

4

47496458

CYLINDER END CAP

2шт.

5

47475862

BALL JOINT

2шт.

6

47475863

RING

2шт.

7

47496460

SEAL KIT

Saddle Suspension, CL4.75; Incl 8 - 13

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON SEAL; Incl in 7

1шт.

9

NSS

NOT SOLD SEPARAT

GUIDE RING; Incl in 7

1шт.

10

NSS

NOT SOLD SEPARAT

STATIC SEAL; Incl in 7

1шт.

11

NSS

NOT SOLD SEPARAT

SECONDARY ROD SEAL; Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

PRIMARY ROD SEAL; Incl in 7

1шт.

13

NSS

NOT SOLD SEPARAT

ROD WIPER; Incl in 7

1шт.
