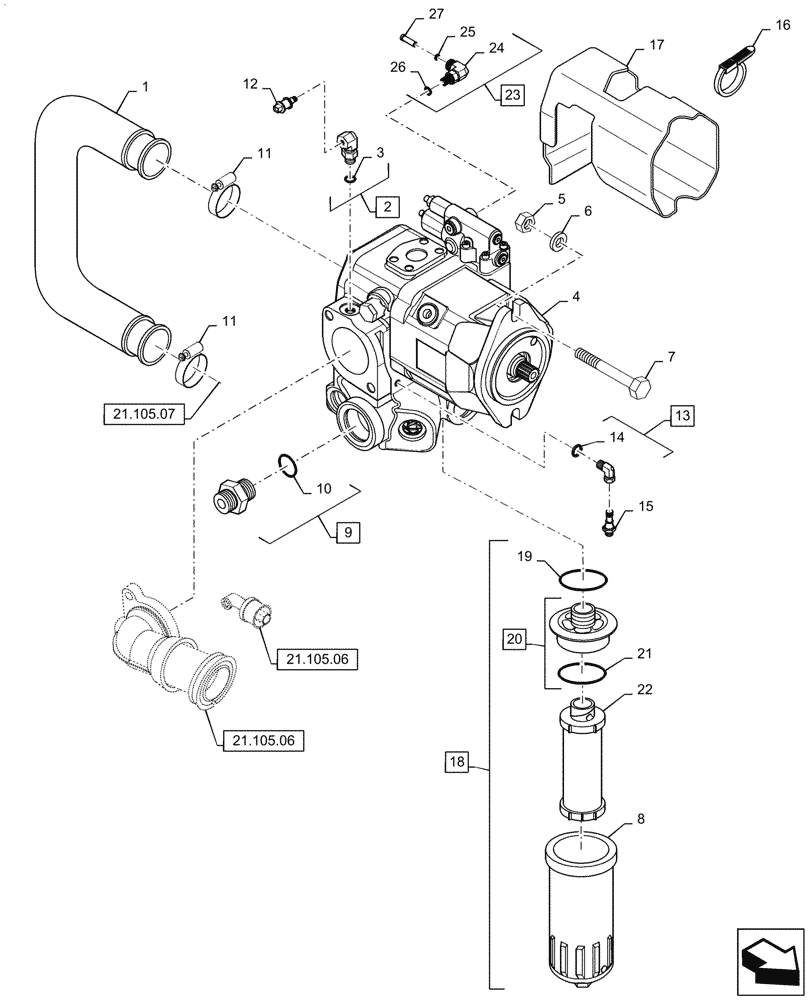

Запчасти Case IH MAGNUM 210 (21.105.03[03]) - HYDRAULIC PUMP, CHARGE PUMP, WITH CONTINUOUSLY VARIABLE TRANSMISSION (21) - TRANSMISSION

1

84236626

HOSE,25.40 mm ID x 185.80 mm

1шт.

2

87667432

HYD CONNECTOR,M10 x 1 x M14 x 1.5

M14 x 1.5, Incl 3

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

84235076

HYDRAULIC PUMP

56cc

1шт.

84353098R

REMAN-HYD PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225, Reman For New P/N 84235076

1шт.

84353098C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87725858C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

4

84353100

HYDRAULIC PUMP,63 CC

63cc

1шт.

84353100R

REMAN-HYD PUMP

MAGNUM 180, MAGNUM 190, MAGNUM 210, MAGNUM 225

1шт.

84353100C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

84353100R

REMAN-HYD PUMP

1шт.

84353100C

CORE-HYDRAULIC PUMP

1шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

M14 x 1.5

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

15877021

BOLT,Hex, M14 x 1.5 x 110mm, Cl 8.8

2шт.

8

84417137

FILTER BOWL

Housing

1шт.

9

84252094

HYD CONNECTOR,M42 X 2 x 22mm

Incl 10

1шт.

10

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

86642485

CLAMP,1.31" - 2.25"

2шт.

12

82025340

RESTRICTION SWITCH

Vacuum

1шт.

13

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

Incl 14

1шт.

14

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

15

87564684

SWITCH ASSY

Low Hydraulic Charge, 473

1шт.

16

14569387

HOSE CLIP

5шт.

17

84212218

NOISE PROTECTION

1шт.

18

84341286

HYDRAULIC OIL FILTER,289.5mm L

Hydraulic Pump, Assy, Incl 8, 19 - 22

1шт.

At 50 hours service with 84417137 Filter Bowl, 84417139 Element, and 84550359 O-Ring. After that, service with 84417139 Element, and 84550359 O-Ring.

1шт.

19

84417142

O-RING,3.53mm Thk x 78.97mm ID

Filter Adapter to Pump

1шт.

20

84474899

ADAPTER

Incl 21

1шт.

21

84550359

O-RING,84.50mm ID x 3.00mm

Filter Housing to Adapter

1шт.

22

84417139

ELEMENT,267.5mm L, 11 Micron

Hydraulic Filter, Charge Pump Suction, CVT

1шт.

23

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

Incl 24 - 27

1шт.

24

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

Incl 25, 26

1шт.

25

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

26

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

27

47126655

FILTER STRAINER

Incl Bushing

1шт.
