Запчасти Case IH MAGNUM 200 (21.155.AQ[01]) - VAR- 429326, 729571 - CLUTCH SUPPORT AND LUBRICATION MANIFOLD, POWERSHIFT (21) - TRANSMISSION

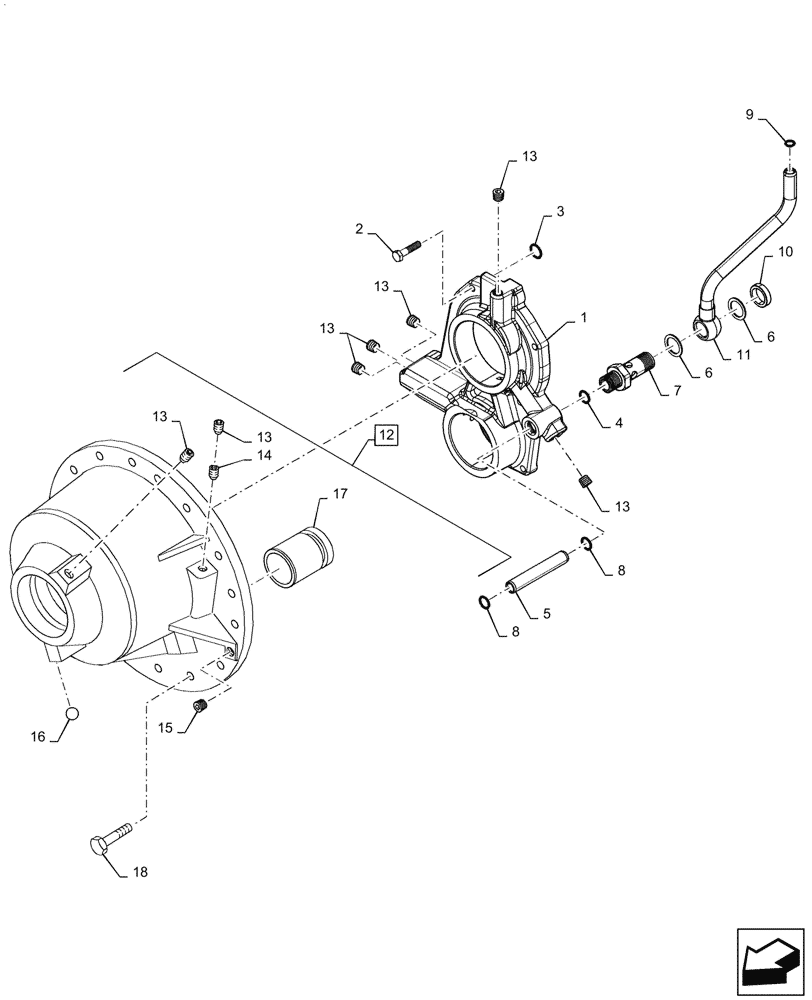

Схема запчастей Case IH MAGNUM 200 - (21.155.AQ[01]) - VAR- 429326, 729571 - CLUTCH SUPPORT AND LUBRICATION MANIFOLD, POWERSHIFT (21) - TRANSMISSION
4
13
11
6
17
13
12
13
18
13
2
8
8
9
5
6
13
3
14
16
15
10
7
13
1

Артикул

Название

Примечание

Количество

1

87611991

MANIFOLD

Clutches, Oil Delivery

1шт.

2

47526495

PREV TORQUE BOLT,Hex, M8 x 1.25 x 30mm L, Cl 8.8

6шт.

3

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

4

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

1шт.

5

5178212

TUBE,97mm L

1шт.

6

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

2шт.

7

5183121

HYD CONNECTOR

1шт.

8

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

9

5172342

O-RING,0.139" Thk x 0.609" ID, -208, 70 Duro

1шт.

10

5164984

SPACER,22.3mm ID x 30mm OD x 7.5mm L

1шт.

11

5186710

TUBE

Lubrication Pipe

1шт.

12

84134777

COVER

Front; Incl 13 (Qty 2), 14 - 17

1шт.

13

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

7шт.

14

5183149

ORIFICE,M12 x 1.25 x 8mm ID x 20mm L

1шт.

15

10268404

PLUG,M20 x 1.25 x 11, DAC

M20 x 11

1шт.

16

20063460

BALL,7.14mm OD, Gr 100

1шт.

17

5171880

TUBE

1шт.

18

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

M8 x 1.25 x 35, 8.8

10шт.

Выбрано товаров: 18
