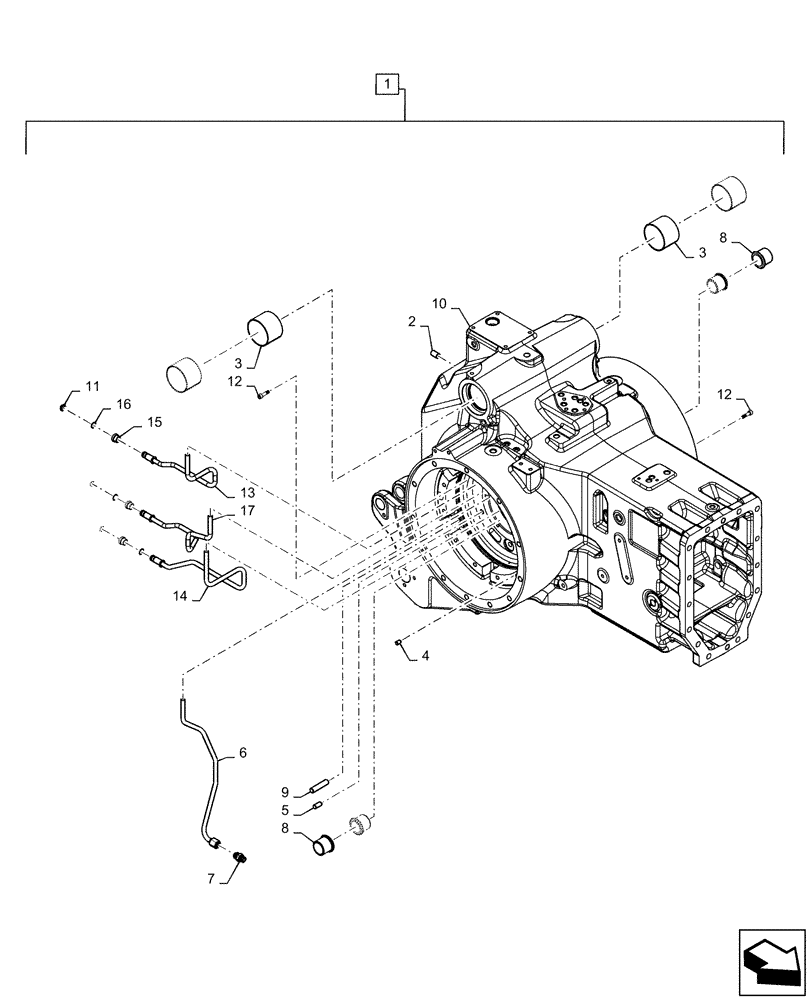

Запчасти Case IH MAGNUM 200 (21.118.AF[02]) - VAR- 429326, 729571 - FINAL DRIVE HOUSING - POWERSHIFT (21) - TRANSMISSION

1

47570060

TRANSMISSION HOUSING

FPS Final Drive/Range Housing, Incl 2 - 17

1шт.

2

4985062

DOWEL,15mm OD x 25mm L

Pin

4шт.

3

5185956

BUSHING,80.1mm ID x 85mm OD x 60mm L

Rockshaft

4шт.

4

10839710

DOWEL,M10 x 15.00mm

Pin

2шт.

5

5110200

DOWEL,12mm OD x 25mm L

Pin

6шт.

6

5198507

TUBE

Pipe, 4WD Complete

1шт.

7

5154713

HYD CONNECTOR

1шт.

8

5194813

BUSHING,37mm ID x 53mm OD x 40mm L

4шт.

9

5187995

GUIDE PIN,15mm OD x 65mm L

6шт.

10

NSS

NOT SOLD SEPARAT

Final Drive/Range Housing, Incl in 1

1шт.

11

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

3шт.

12

14306520

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

13

84269541

TUBE

Pipe, PTO Supply to Rear

1шт.

14

84269540

TUBE

Pipe, PTO, Brake

1шт.

15

84268812

BUSHING,16mm ID x 23mm OD x 16mm L

3шт.

16

84268818

SNAP RING

3шт.

17

84271077

TUBE

Pipe, Lubrication

1шт.
