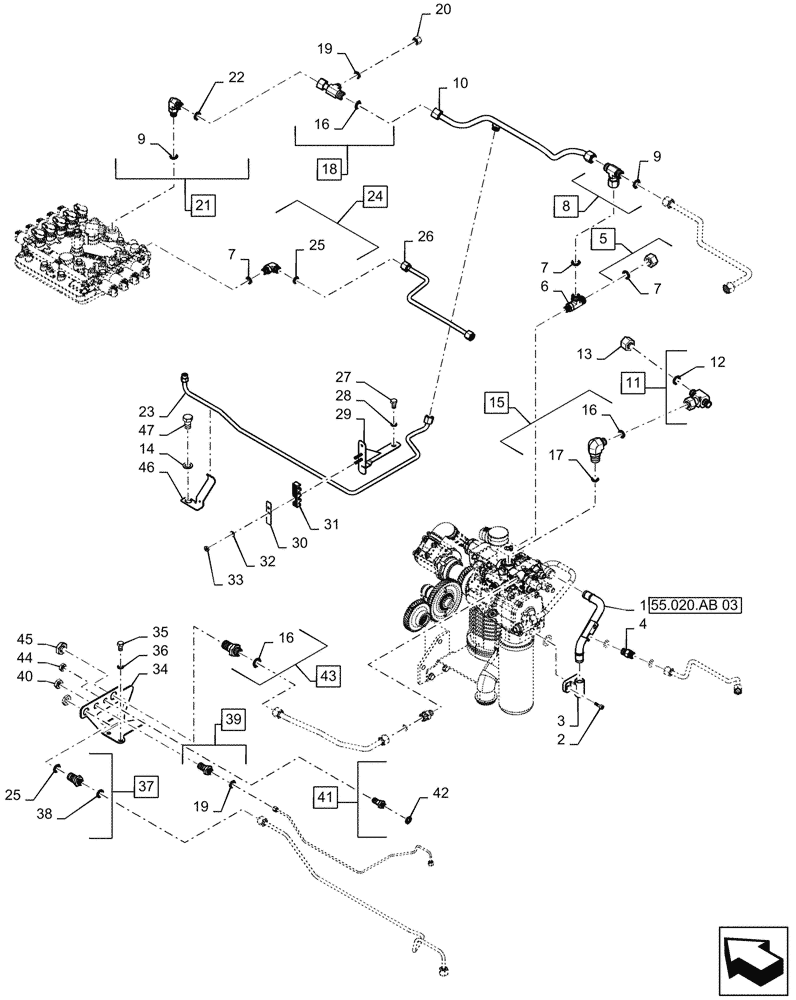

Запчасти Case IH MAGNUM 200 (21.105.BL[04]) - VAR- 429326, 729571 - TRANSMISSION LUBRICATION LINES - POWERSHIFT - BSN ZERH08099 (21) - TRANSMISSION

1

47460179

PIPE

G Port

1шт.

2

86625220

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

3

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

4

84140206

CHECK VALVE

Brake Lube

1шт.

5

9840576

CAP,1" - 14 ORFS

M18 x 1.5 x 1-14; Incl 7

1шт.

6

47480712

TEE

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

5197110

TEE,1"-14 UNS

1-14 x 1-14; Incl 9

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

10

47449772

PIPE

Transmission

1шт.

11

87328818

TEE

Female Swivel Branch ORFS 20 mm; Incl 12

1шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

13

9847689

CAP,1-3/16" - 12 ORFS

1шт.

14

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

15

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Incl 16, 17

1шт.

16

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

18

84606880

TEE,11/16"-16 ORFS x 1"-14 ORFS x 1"-14

Incl 16, 19

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

20

9625546

CAP,11/16" - 16 ORFS

1шт.

21

5194728

90 ELBOW

Incl 9, 22

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

23

47582936

HYD TUBE

Inlet Booster Brake

1шт.

24

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Incl 7, 25

1шт.

25

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

26

47582362

HYD TUBE

Inlet Clutch 50 KPH

1шт.

27

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

28

13507421

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.

29

47367522

BRACKET

Hyd Tube

1шт.

30

47593945

PLATE

Tube Clamp

1шт.

31

47593944

PIPE CLAMP

1шт.

32

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

33

10725914

LOCK NUT,M6 x 1, Cl 04

2шт.

34

47567072

BRACKET

Hyd Tube Support

1шт.

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

36

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

37

87711900

HYD CONNECTOR

ORFS-ORFS 11/16 -13/16; Incl 25, 38

1шт.

38

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

39

86978770

UNION,11/16"-6, ORFS

Incl 19

1шт.

40

87010704

BHD LOCK NUT,11/16"-16

1шт.

41

86639059

UNION,9/16"-18 ORFS, Blkd

Incl 42

1шт.

42

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

43

86978771

UNION,16mm L

ORFS BULK HD 16 mm OR 5/8 IN; Incl 16

1шт.

44

86639063

BHD LOCK NUT,9/16"-18, ORFS Blkhd

1шт.

45

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

46

47582936

HYD TUBE

Inlet Booster Brake

1шт.

47

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.
