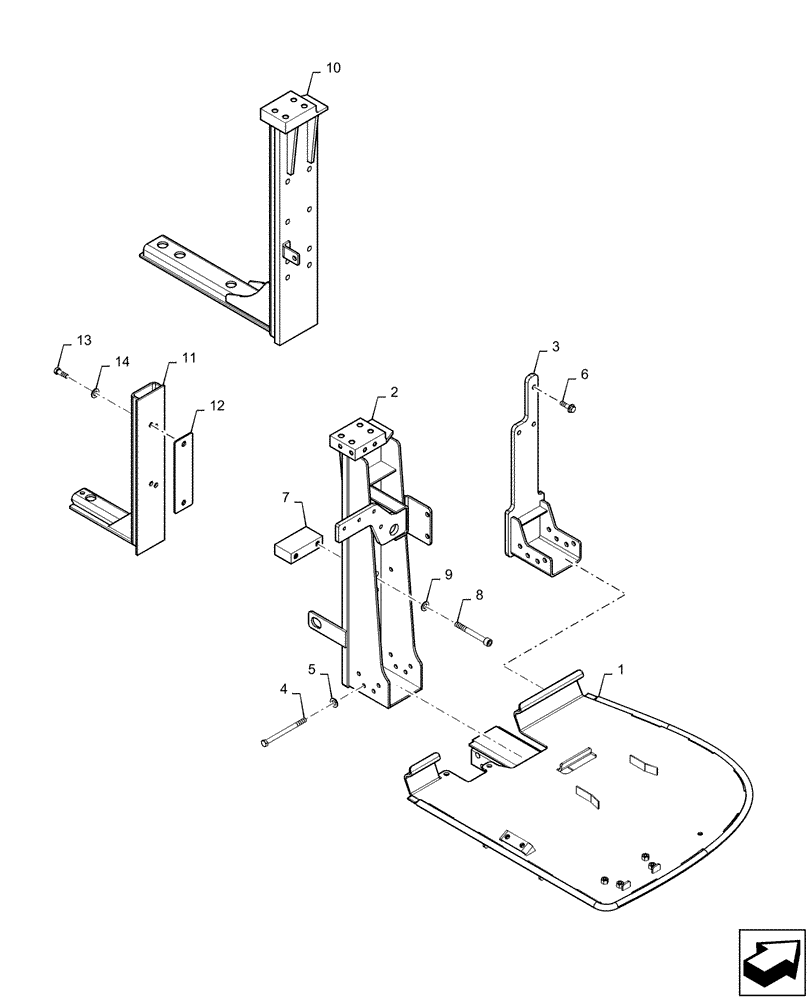

Запчасти Case IH MAGNUM 200 (90.150.AJ[01]) - FRONT ISOLATOR MOUNT - PST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47650266

BRACKET

RH Fuel Tank Support

1шт.

2

47538053

BRACKET

Fuel Tank Support

1шт.

3

84595908

BRACKET

Fuel Tank Support

1шт.

4

814-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 8.8

8шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

6

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

3шт.

7

87731264

SPACER

Front

4шт.

8

87733389

HEX SOC SCREW,M14 x 1.5 x 120mm, Cl 10.9

8шт.

9

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

15 x 28 x 2.5 mm HTS ZND

8шт.

10

84123200

PLATE

LH Front Isomount

1шт.

11

87496282

SUPPORT

Fuel Tank

1шт.

12

87731261

SPACER

LH Rear

1шт.

13

86637970

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

14

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.
