(55.518.AW[03]) - WINDSHIELD WASHER , RH WINDOW

Запчасти Case IH MAGNUM 200 (55.518.AW[03]) - WINDSHIELD WASHER , RH WINDOW (55) - ELECTRICAL SYSTEMS

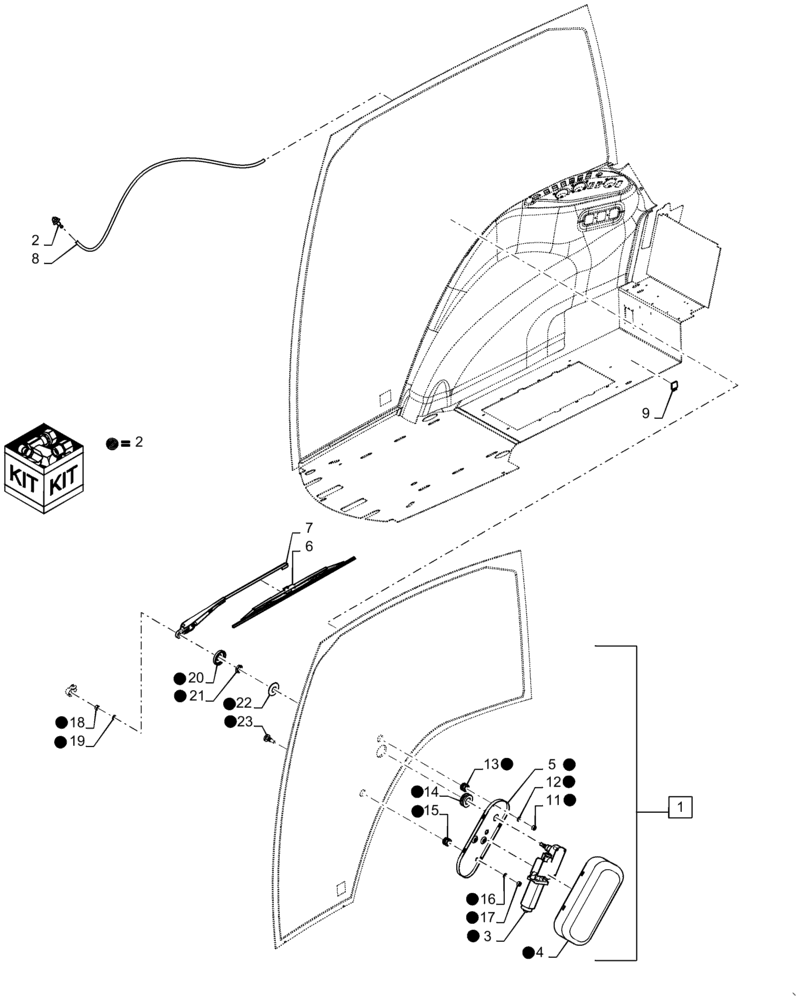

Схема запчастей Case IH MAGNUM 200 - (55.518.AW[03]) - WINDSHIELD WASHER , RH WINDOW (55) - ELECTRICAL SYSTEMS
18
6
23
15
21
3
8
13
11
22
5
2
9
2
4
1
19
16
20
7
14
17
12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87417652

WIPER MOTOR

RH Window Incl 11 - 23

1шт.

2

87435150

SERVICE KIT

Hardware, RH Window Wiper Motor; Incl 3 - 5, 11 - 23

1шт.

3

87435151

WIPER MOTOR

RH Window

1шт.

4

87435149

COVER

RH Windshield Washer Motor

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE; Incl in 1

1шт.

6

87417654

WIPER BLADE

RH Windshield Washer

1шт.

7

87417653

WIPER ARM

RH Windshield Washer

1шт.

8

87353989

PLASTIC-RUBBER TUBE

785mm

1шт.

9

87414866

RELAY,12V, 20A

RH Windshield Washer

1шт.

10

84037532

NOZZLE

Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Nut, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Thin Nut, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.
