Запчасти Case IH MAGNUM 200 (55.518.AW[01]) - WINDSHIELD WASHER , FRONT AND REAR - BSN ZERH08099 (55) - ELECTRICAL SYSTEMS

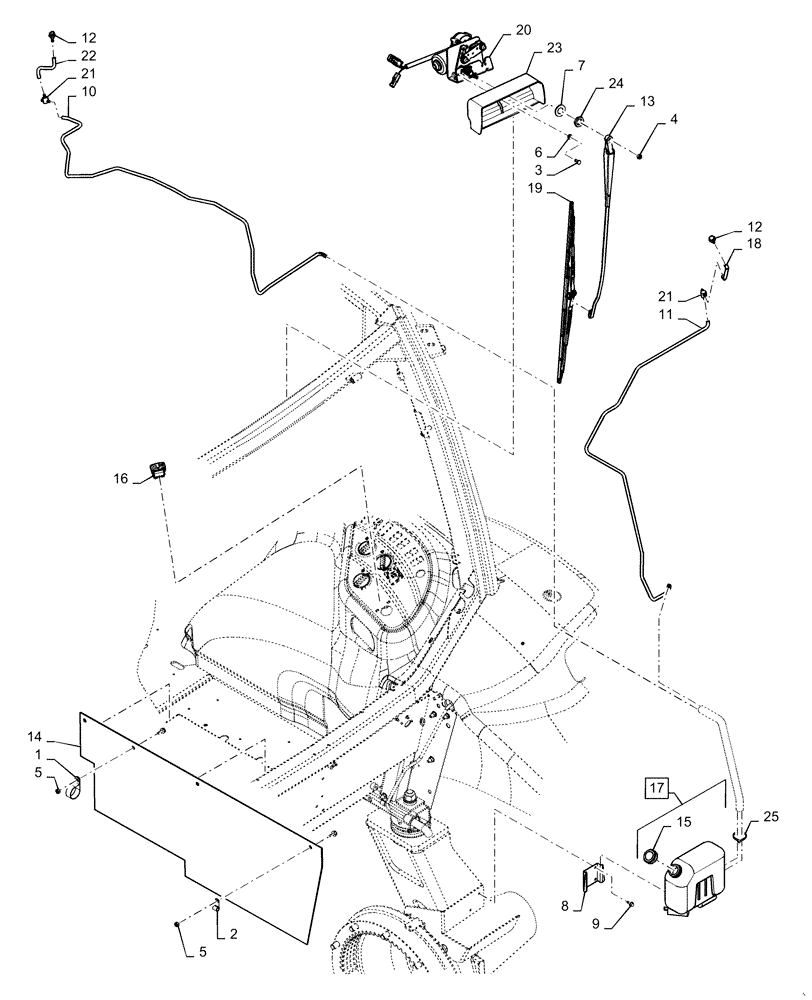

Схема запчастей Case IH MAGNUM 200 - (55.518.AW[01]) - WINDSHIELD WASHER , FRONT AND REAR - BSN ZERH08099 (55) - ELECTRICAL SYSTEMS
15
14
21
7
9
25
20
1
12
3
18
8
12
2
17
11
21
19
13
24
4
5
9
6
10
22
16
5
23

Артикул

Название

Примечание

Количество

1

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

2шт.

2

516-2295

CLAMP,J, 7/16" Insul, 5/16" Bolt

2шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

4

825-1408

NUT,M8, Cl 8

1шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

895-11020

WASHER,M20 x 37 x 3

1шт.

8

5155855

BRACKET

Wiper Tank Fixing

1шт.

9

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

10

47527089

HOSE

Washer, Front Windshield 3600 mm

1шт.

11

47527238

HOSE

Washer, Rear Windshield 1750 mm

1шт.

12

84037532

NOZZLE

Washer

2шт.

13

84122637

WIPER ARM

1шт.

14

84143098

COVER

RH Wheel Well Skirt

1шт.

15

82036769

FILLER CAP

Windshield Washer

1шт.

16

86989939

WINDSHIELD WIPER SWI

Rear Wiper

1шт.

17

87337962

RESERVOIR, WINDSHIEL

2 Pumps; Incl 15

1шт.

18

87419425

HOSE

Windshield Washer

1шт.

19

87673380

WIPER BLADE

1шт.

20

87673381

WIPER MOTOR

1шт.

21

87739133

CHECK VALVE

Washer Fluid Double Output w/End Cap

2шт.

22

233105A1

HOSE,3.56mm ID x 250mm L

Washer

1шт.

23

401109A3

CAGE

Wiper Motor

1шт.

24

87408553

KIT

Wiper Motor Hardware

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

Выбрано товаров: 25
