(55.511.AM[01]) - WIRE HARNESS, BEACON LIGHT

Запчасти Case IH MAGNUM 200 (55.511.AM[01]) - WIRE HARNESS, BEACON LIGHT (55) - ELECTRICAL SYSTEMS

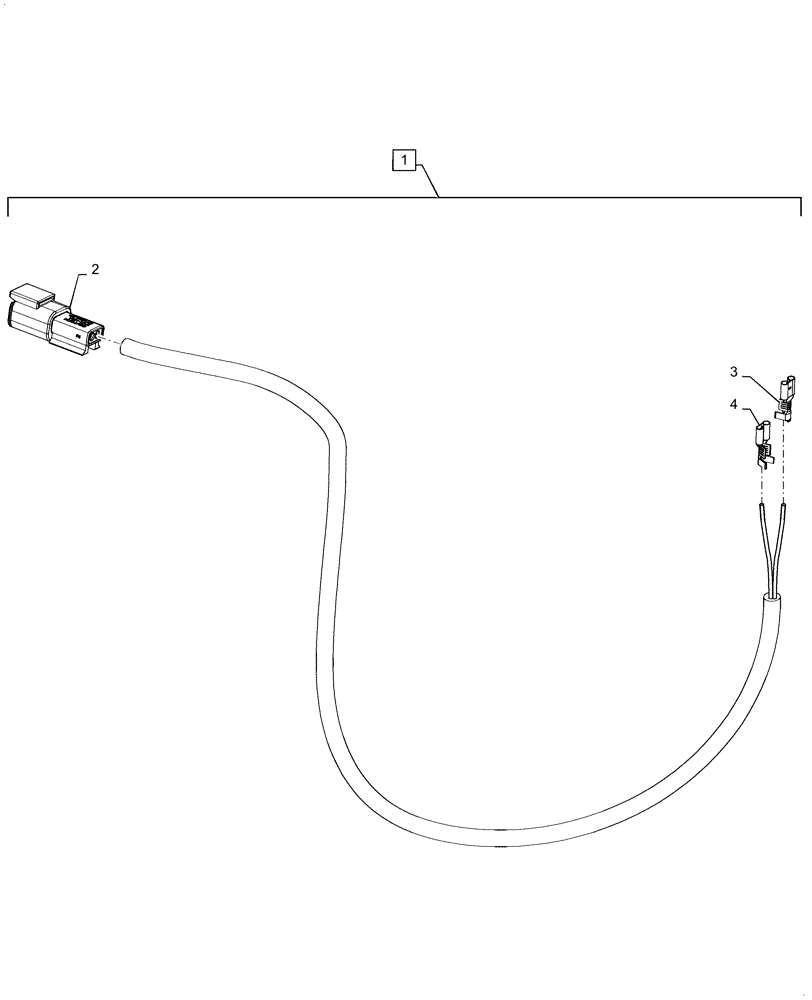

Схема запчастей Case IH MAGNUM 200 - (55.511.AM[01]) - WIRE HARNESS, BEACON LIGHT (55) - ELECTRICAL SYSTEMS
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47562450

WIRE HARNESS

Beacon Light, Incl 2 - 4

1шт.

2

87696547

ELEC CONNECTOR,Female, 2 Cavities

X-365/X-364 To Beacon/Strobe Harness, Deutsch DTM Series 2-way

1шт.

2

87696141

TERMINAL

Deutsch Size 20

2шт.

2

87696585

LOCKING TAB,Wedge Lock, 2-Pin

Wedge Lock, 2-way

1шт.

3

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

X-1 Beacon Light B+, Faston .250

1шт.

4

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

X-2 Ground, Faston .250

1шт.
