(55.510.DP) - HARNESS, ARMREST

Запчасти Case IH MAGNUM 200 (55.510.DP) - HARNESS, ARMREST (55) - ELECTRICAL SYSTEMS

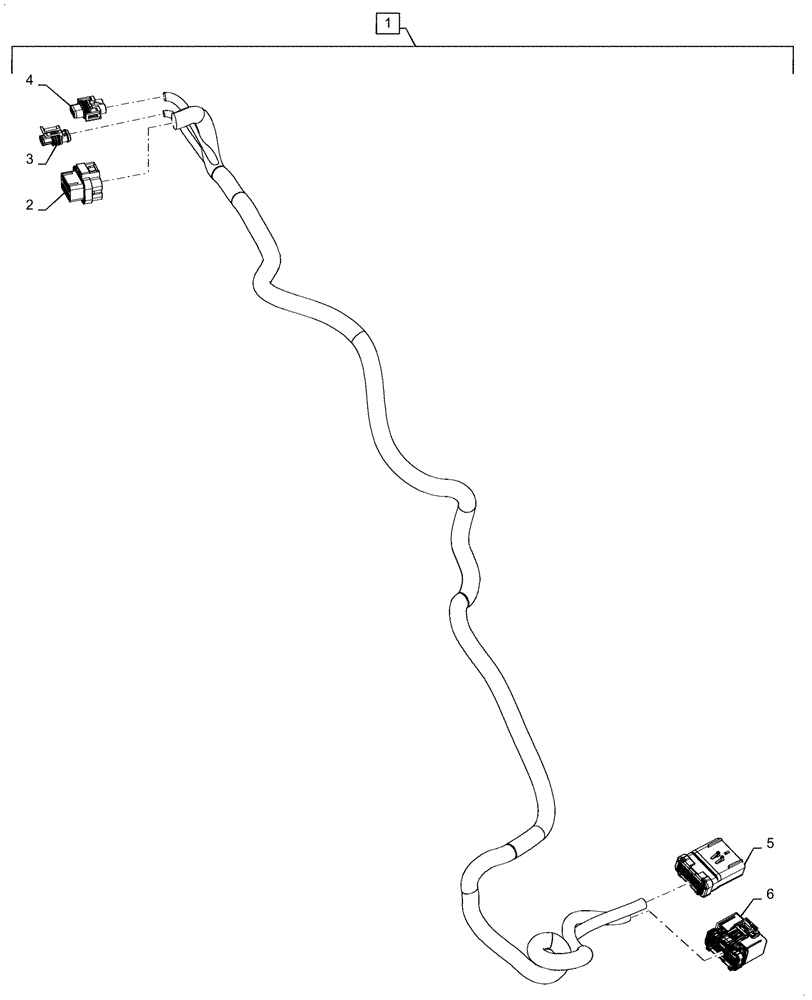

Схема запчастей Case IH MAGNUM 200 - (55.510.DP) - HARNESS, ARMREST (55) - ELECTRICAL SYSTEMS
2
1
3
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84368485

HARNESS

Armrest, Incl 2 - 6

1шт.

2

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

137M, To Armrest Console

1шт.

3

82012083

WIRE CONNECTOR,Female

284F, To Motor

1шт.

4

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

283F, To Switch

1шт.

5

87382929

WIRE CONNECTOR,Male, 14 Cavities

280F, To Cab Harness

1шт.

6

87382926

WIRE CONNECTOR,Female, 14 Cavities

281F, To Cab Harness

1шт.
