(55.202.AC) - GRID HEATER RELAY AND CABLES

Запчасти Case IH MAGNUM 200 (55.202.AC) - GRID HEATER RELAY AND CABLES (55) - ELECTRICAL SYSTEMS

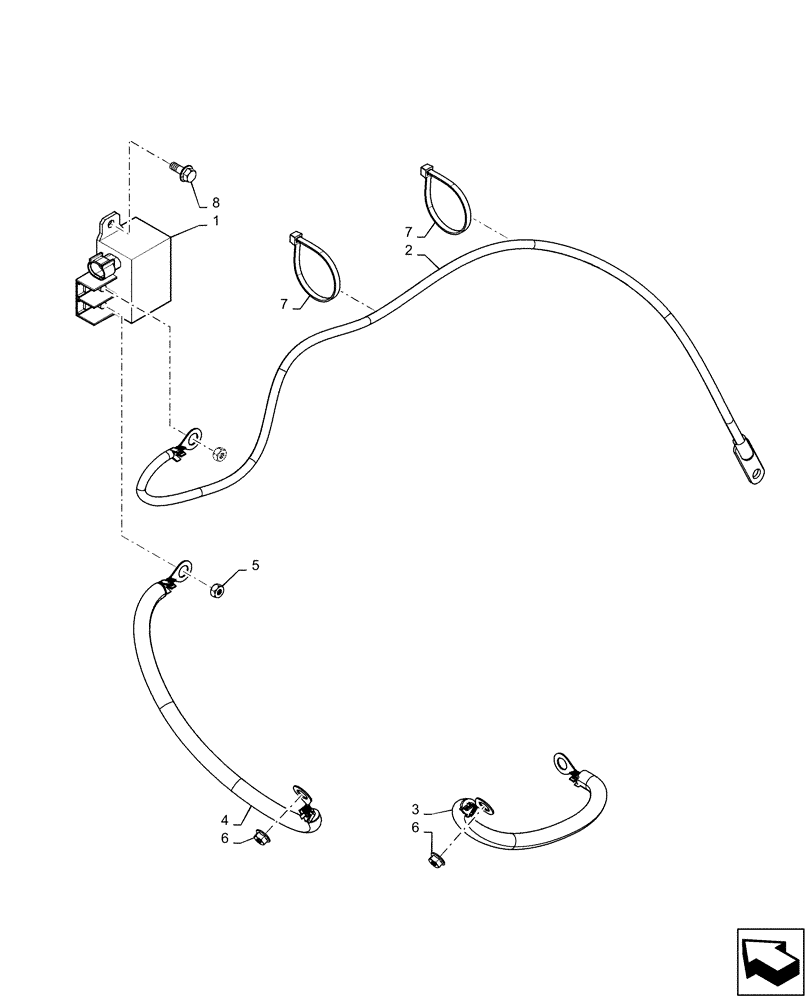

Схема запчастей Case IH MAGNUM 200 - (55.202.AC) - GRID HEATER RELAY AND CABLES (55) - ELECTRICAL SYSTEMS
8
6
3
4
5
7
7
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86619908

RELAY,12V, 150A

Cold Start, Grid Heater

1шт.

2

47519266

ELECTRIC CABLE

Grid Heater Relay to Alternator

1шт.

3

84164624

GROUND CABLE

Grid Heater to Ground

1шт.

4

84164625

ELECTRIC CABLE

Grid Heater to Relay

1шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

7

86566989

CABLE TIE,208mm L

2шт.

8

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.
