(55.101.AC[02]) - VAR- 429326, 729571 - CHASSIS WIRE HARNESS - FPS - BSN - ZERH08099

Запчасти Case IH MAGNUM 200 (55.101.AC[02]) - VAR- 429326, 729571 - CHASSIS WIRE HARNESS - FPS - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS

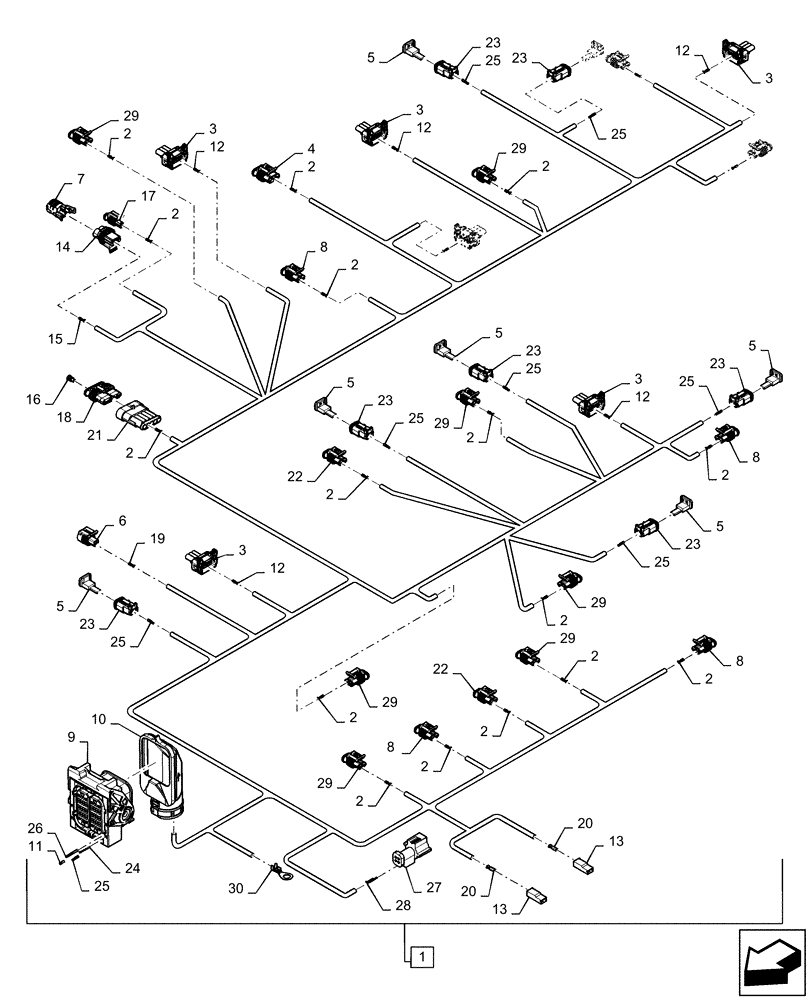

Схема запчастей Case IH MAGNUM 200 - (55.101.AC[02]) - VAR- 429326, 729571 - CHASSIS WIRE HARNESS - FPS - BSN - ZERH08099 (55) - ELECTRICAL SYSTEMS
29
5
6
21
3
23
3
3
11
20
3
18
27
5
2
8
29
13
2
10
9
29
23
2
13
2
4
28
2
5
23
29
19
2
25
12
29
12
25
5
2
2
5
26
24
2
5
23
25
25
22
20
25
23
30
16
25
12
23
2
2
2
15
2
22
7
29
29
12
2
2
3
25
12
8
17
25
8
2
23
14
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84581791

WIRE HARNESS

FPS, Incl 2 - 30

1шт.

2

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

AMP Mini MIC

39шт.

3

82865818

ELEC CONNECTOR

FCI JPT 3-way, X-226 PTO Twist Sensor, X-251 PTO Speed Sensor, X-257 Axle Speed Sensor, X-258 Draft Pin RH, X-266 Draft Pin LH, X-652 Mid Speed Sensor

6шт.

4

84062580

CONNECTOR, ELEC

AMP Superseal 1.5 3-way, X-270 Rockshaft Potentiometer

1шт.

5

84074638

LOCKING TAB,Locking Wedge, Green

Wedge Lock 2-way

7шт.

6

84078681

WIRE CONNECTOR,Female

Delphi Metri-Pack .150 3-way, X-1158 Transmission Pressure Sensor

1шт.

7

84137907

ELEC CONNECTOR

Black Secondary Lock 2-way

1шт.

8

84152155

ELEC CONNECTOR

AMP Superseal 1.5 2-way, X-286 RPTO Brake Solenoid, X-635 Clutch Solenoid A, X-638 Clutch Solenoid D, X-642 Med Range Solenoid

4шт.

9

84254835

ELEC CONNECTOR

Deutsch 64-way, X-026A To Outside Cab Harness

1шт.

10

84539347

SHELL

Backshell 90 degree

1шт.

11

84807680

PLUG

Deutsch Sealing Plug No. 20

14шт.

12

87475406

TERMINAL

DCS 2.8mm

18шт.

13

87581782

ELEC CONNECTOR,Female

AMP Posi-Lock .250 1-way, X-1285 and X-1286 Steer/Brake Boost Pressure

2шт.

14

87679438

WIRE CONNECTOR,Female

Delphi Metri-Pack .280 2-way, X-474 Hydro Filter

1шт.

15

87680656

CONTACT

Female Metri-Pack .280 Terminal

1шт.

16

87680691

PLUG

Superseal 1.5 Cavity Plug

5шт.

17

87687239

CONTACT HOUSING,Female, 1 Pole

AMP Superseal 1.5 1-way, X-473 Low Hyd Charge Switch

1шт.

18

87688719

ELEC CONNECTOR,Female, 5 Cavities

AMP Superseal 1.5 5-way, X-954 To Creeper Sensor/Solenoid

1шт.

19

87690510

ELEC. TERMINAL PIN,Female, 0.75 - 1 mm2

Metri-Pack .150

3шт.

20

87691548

TERMINAL

Positive Lock

2шт.

21

87691924

ELEC CONNECTOR

ELEC CONNECTOR AMP Superseal 1.5 5-way

1шт.

22

87691973

WIRE CONNECTOR,Female

AMP Superseal 1.5 2-way, X-287 Rear PTO Solenoid, X-637 Clutch Solenoid C, X-641 Clutch Low Range Solenoid

3шт.

23

87695582

ELEC CONNECTOR,Female, 2 Pole

Deutsch DT Series 2-way, X-268 EDC Valve Raise, X-272 EDC Valve Lower, X-296 Transmission Oil Temperature, X-646 Low Range Pressure Switch, X-647 Med Range Pressure Switch, X-648 High Range Pressure Switch, X-649 Reverse Range Pressure Switch

7шт.

24

87695618

TERMINAL

Solid Socket Contact Size 16

1шт.

25

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Stamped Socket Contact Size 16

18шт.

26

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Solid Socket Contact Size 20

43шт.

27

87712738

ELEC CONNECTOR

Altair Micro-Pin 4-way, X-2014 Radar

1шт.

28

87718312

CABLE TERMINAL

Female

4шт.

29

82012083

WIRE CONNECTOR,Female

AMP Superseal 1.5 2-way, X-271 19th Gear Solenoid, X-273 19th Dump Solenoid, X-285 2WD Solenoid, X-478 Diff Lock Solenoid, X-636 Clutch Solenoid B, X-639 Clutch Solenoid E, X-643 Clutch Hi Range Solenoid, X-644 Rev Range Solenoid

8шт.

30

NSS

NOT SOLD SEPARAT

TERMINAL, X-059 Cab Mount/Support Ground, Incl in 1

1шт.
