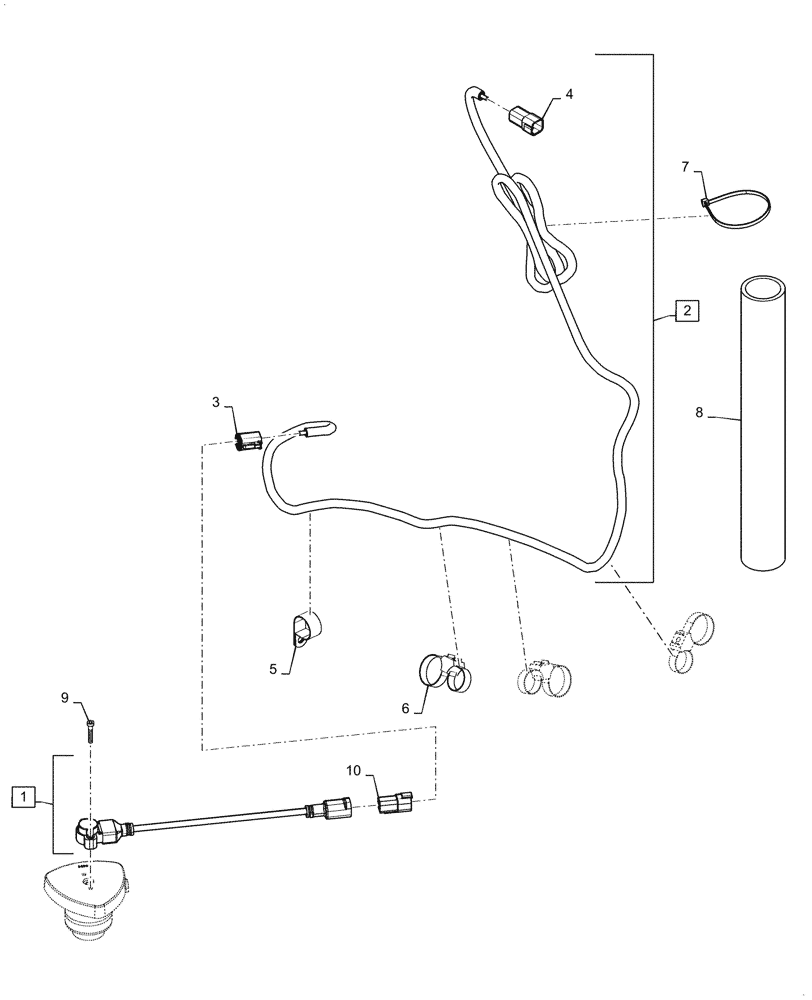

Запчасти Case IH MAGNUM 200 (55.047.AA) - STEERING ANGLE SENSOR AND WIRING (55) - ELECTRICAL SYSTEMS

1

87524642

SENSOR

Angle Position, Incl 10

1шт.

2

84598224

WIRE HARNESS

Steering Sensor; Incl 3 - 4

1шт.

3

87694112

ELEC CONNECTOR,Female, 6 Pole

X-500, To Sensor

1шт.

4

87694152

CONTACT HOUSING,Male, 6 Pole

X-437, From Engine Harness

1шт.

5

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

6

86991000

CLAMP

Dual Tie

3шт.

7

86566990

CABLE TIE,292mm OAL x 4.8mm W

1шт.

8

87404616

CONDUIT

1шт.

9

864-5030

HEX SOC SCREW,M5 x 30mm, Cl 8.8

2шт.

10

87695579

WIRE CONNECTOR

1шт.
