(55.024.AH[01]) - SOLENOID, TRANSMISSION CONTROL VALVE, POWERSHIFT

Запчасти Case IH MAGNUM 200 (55.024.AH[01]) - SOLENOID, TRANSMISSION CONTROL VALVE, POWERSHIFT (55) - ELECTRICAL SYSTEMS

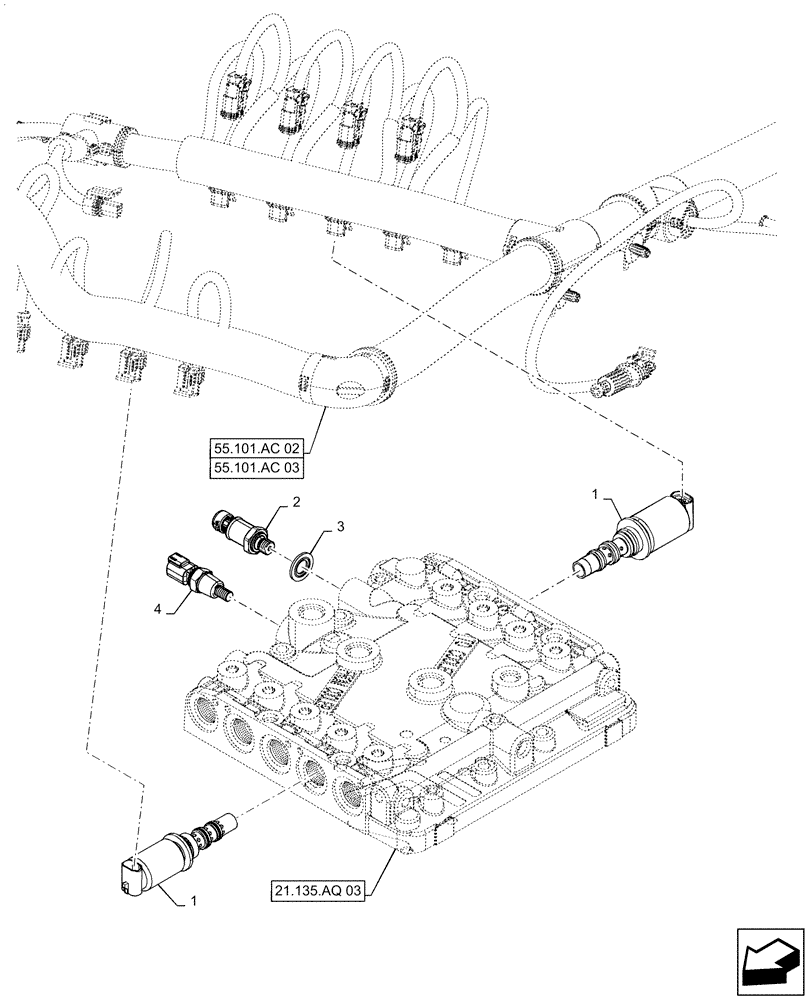

Схема запчастей Case IH MAGNUM 200 - (55.024.AH[01]) - SOLENOID, TRANSMISSION CONTROL VALVE, POWERSHIFT (55) - ELECTRICAL SYSTEMS
55.101.ac 02
1
2
1
3
4
21.135.aq 03
55.101.ac 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87739558

SOLENOID VALVE,14W

Transmission Control

9шт.

1

87739558R

REMAN-SOLENOID

9шт.

1

87739558C

CORE-SOLENOID

Return Number

9шт.

2

84407735

PRESSURE SWITCH,0.40 Bar

Transmission Pressure, X-1158

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

4

87564690

TEMPERATURE SENDER,3/8" - 18

Transmission Oil Temperature, X-296

1шт.
