(55.020.AA[01]) - VAR- 429326, 729571 - SPEED SENSOR, POWERSHIFT

Запчасти Case IH MAGNUM 200 (55.020.AA[01]) - VAR- 429326, 729571 - SPEED SENSOR, POWERSHIFT (55) - ELECTRICAL SYSTEMS

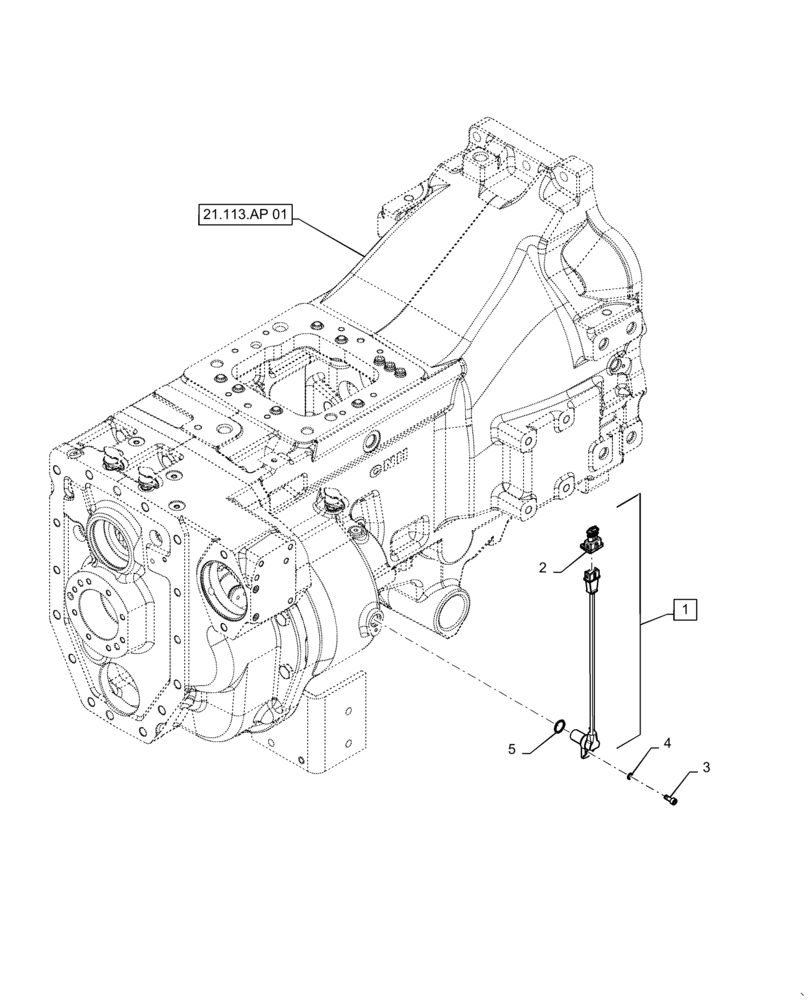

Схема запчастей Case IH MAGNUM 200 - (55.020.AA[01]) - VAR- 429326, 729571 - SPEED SENSOR, POWERSHIFT (55) - ELECTRICAL SYSTEMS
3
5
2
1
21.113.ap 01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47766973

SENSOR

Speed, Transmission

1шт.

2

84806091

WIRE CONNECTOR,Female, 3 Pin

1шт.

2

82035902

PLUG

Cavity

3шт.

3

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

1шт.

4

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

5

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

1шт.
