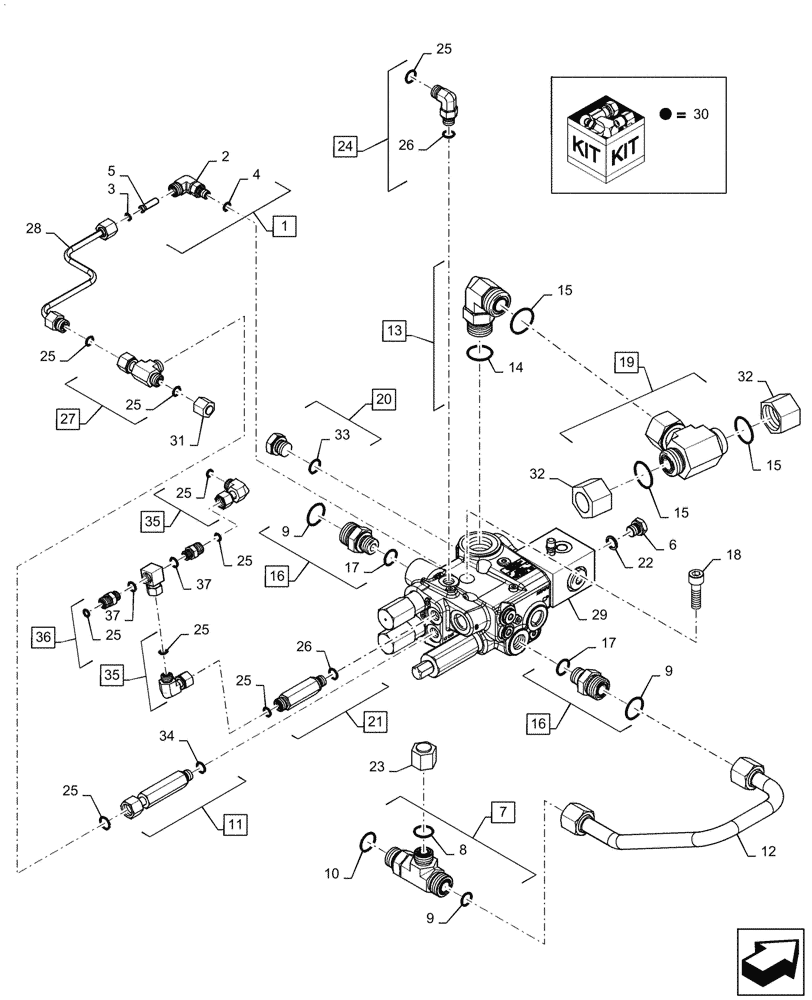

Запчасти Case IH MAGNUM 200 (41.200.BY[01]) - PRIORITY VALVE, MAIN, POWERSHIFT (41) - STEERING

1

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

Incl 2 - 5

1шт.

2

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

1шт.

3

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

4

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

5

47126655

FILTER STRAINER

With Bushing

1шт.

6

47131496

PLUG,Hex, M12 x 1

M12 x 1

1шт.

7

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

Incl 8 - 10

1шт.

8

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

9

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

47456482

HYD CONNECTOR

Incl 34

1шт.

12

84597338

PIPE

Discharge

1шт.

13

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 14 - 15

1шт.

14

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

16

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Incl 9, 17

2шт.

17

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

18

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

19

87328818

TEE

Incl 15

1шт.

20

86981620

PLUG,M16 x 1.5, ORB

Incl 33

1шт.

21

84270265

FITTING,M12 x 1.5 x 9/16"-18

Incl 25 - 26

1шт.

22

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

23

9840575

CAP,13/16" - 16 ORFS

1шт.

24

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

Incl 25 - 26

1шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

10шт.

26

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

27

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

Incl 25

1шт.

28

47644326

PIPE

LS Pump

1шт.

29

47410289

FLOW CONTROL VALVE

Priority Regulator, Flow Control

1шт.

30

84355656

SEAL KIT

For Priority Valve

1шт.

31

87668376

CAP,9/16"-18 Inch THD

9/16"-18 ORFS

2шт.

32

9847689

CAP,1-3/16" - 12 ORFS

2шт.

33

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

34

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

35

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 25

2шт.

Use with suspended MFD axle or mid-mount valve

1шт.

36

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

Incl 25, 37

1шт.

Use with suspended MFD axle or mid-mount valve

1шт.

37

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.
