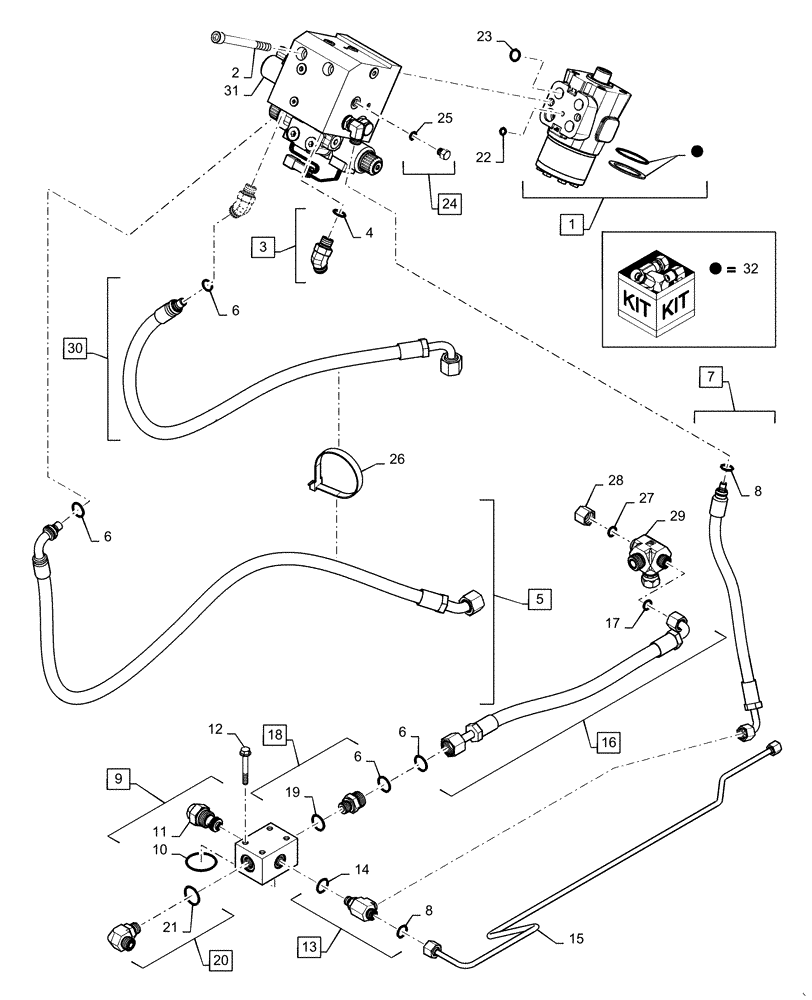

Запчасти Case IH MAGNUM 200 (41.200.AT[03]) - HYDRAULIC STEERING SYSTEM - PST, NON-SUSPENDED AXLE (41) - STEERING

1

84552393

STEERING VALVE

293CC/REV AG; Incl 32

1шт.

2

86625211

HEX SOC SCREW,M12 x 1.75 x 130mm, Cl 8.8

2шт.

3

87345924

FITTING,45 Degree, M18 x 1.5 ORB x -08 Fem STC

45 DEG- M18 ORB x -8 STC; Incl 4

3шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

5

47476797

HYDRAULIC HOSE

Steering Supply; Incl 6

1шт.

6

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

7

84174370

HYDRAULIC HOSE

Steering LS; Incl 8

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

87472910

VALVE PRESSURE RELIE

Steering; Incl 10, 11

1шт.

10

238-5124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1шт.

11

242569A1

CARTRIDGE

1шт.

12

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

3шт.

13

87499945

BRANCH TEE

1MM ORIFICE, M14 x 11/16; Incl 8, 14

1шт.

14

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

47477260

HYD TUBE

Steering LS

1шт.

16

47488809

HYDRAULIC HOSE

Drop Box Lube; Incl 6, 17

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

Incl 6, 19

1шт.

19

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 21

1шт.

21

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

23

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

24

9672438

PLUG,7/16" - 20 ORB

Incl 25

1шт.

25

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

86991007

CABLE TIE,509mm L

20 x .28", Nylon, Black

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

701-905

CAP,13/16" - 16

1шт.

29

84168644

TEE

4 Way w/Swivel

1шт.

30

47618931

HOSE

Steering Return; Incl 6

1шт.

31

47650235

VALVE

Assy, CCLS, Autoguidance

1шт.

31

47650235R

REMAN-HYD VALVE

Reman Assy, CCLS, Autoguidance

1шт.

31

47650235C

CORE-VALVE HYD

Core Return Number

1шт.

32

87454545

SEAL KIT

Steering Valve

1шт.
