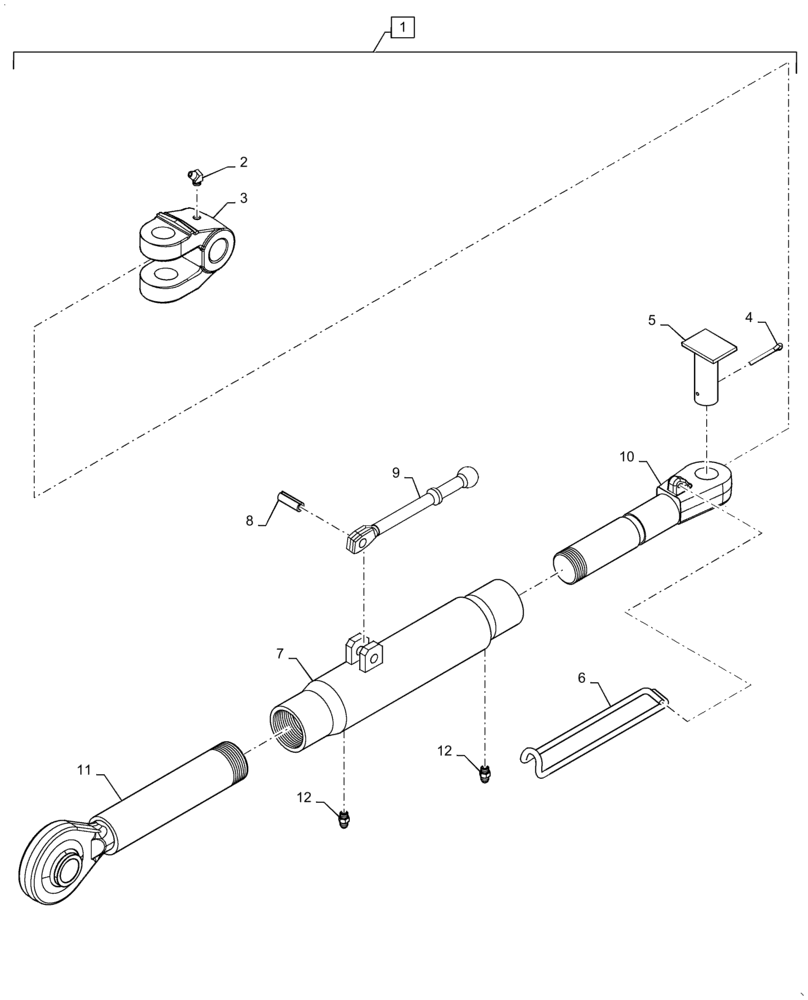

Запчасти Case IH MAGNUM 200 (37.110.AA[02]) - VAR- 728232 - HITCH, TOP LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47612946

LINK

Cat. 3 Ball End - Short

1шт.

2

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

3

87358968

YOKE

Swivel

1шт.

4

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

5

5197827

PIN

Swivel Yoke Pin

1шт.

6

5140619

SPRING,215mm L

Spring

1шт.

7

47584224

TURNBUCKLE

3 PTH Top Link 1-1/2" Thread

1шт.

8

14613471

ROLL PIN,12mm OD x 40mm L

12 x 40mm

1шт.

9

5172394

LEVER

Crank

1шт.

10

47584226

TIE-ROD

3 PTH Tractor End 1-1/2" Thread

1шт.

11

5197812

TIE-ROD

IMP. End

1шт.

12

378716A1

LUBE NIPPLE,Hex, M10 x 1 x 17.5mm L

10mm Tapping

2шт.
