Запчасти Case IH MAGNUM 200 (35.204.BS[04]) - MID-MOUNT CONTROL VALVE - 2, POWERSHIFT (35) - HYDRAULIC SYSTEMS

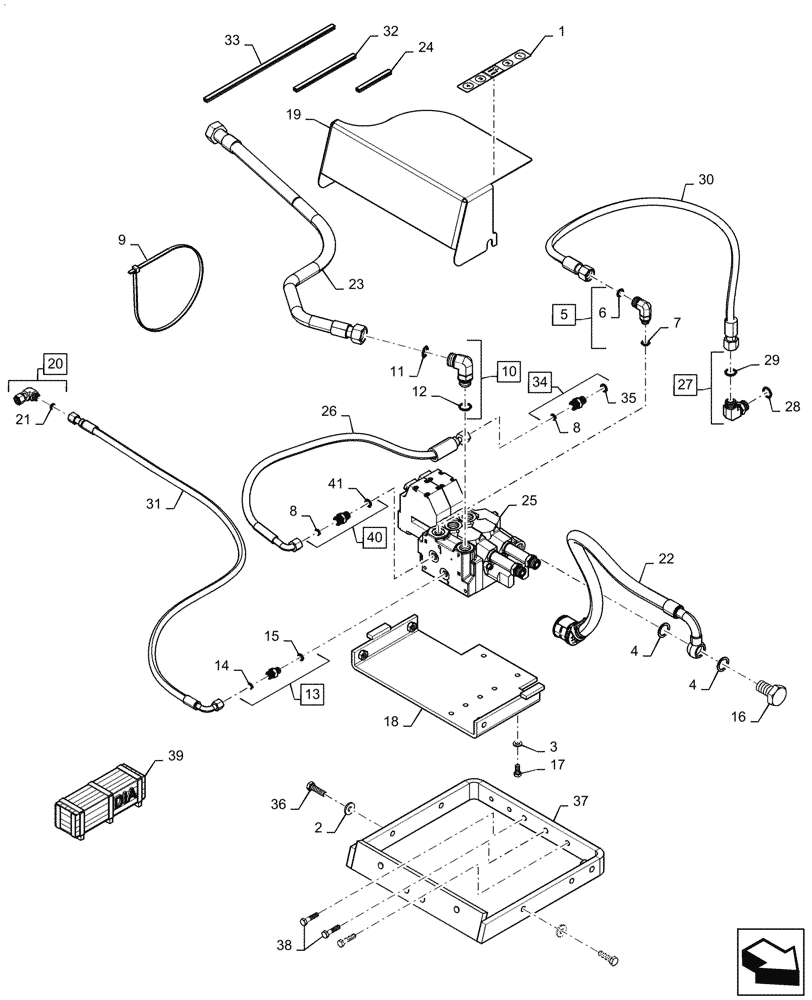

Схема запчастей Case IH MAGNUM 200 - (35.204.BS[04]) - MID-MOUNT CONTROL VALVE - 2, POWERSHIFT (35) - HYDRAULIC SYSTEMS
24
13
25
41
9
32
8
6
15
35
33
36
4
16
12
40
5
37
11
23
7
19
26
31
34
28
38
1
17
30
39
20
22
14
3
4
8
21
2
29
18
27
10

Артикул

Название

Примечание

Количество

1

82029712

DECAL

Hydraulic Remote Valve

1шт.

2

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

3

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

4

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

5

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

Incl 6, 7

1шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

7

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

9

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

3шт.

10

5194728

90 ELBOW

Incl 11, 12

1шт.

11

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

5185045

HYD CONNECTOR

Incl 14, 15

1шт.

14

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

15

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

16

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

17

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

18

87598923

SUPPORT

Mid-mount Valve

1шт.

19

87736308

COVER ASSY

Mid-mount Valve

1шт.

20

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 21

1шт.

21

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

Mid-mount Valve Return, To Filter

1шт.

23

87568645

HYDRAULIC HOSE,15.88mm ID x 1080mm L, SAE 100R2

Mid-mount Valve Supply From Priority Valve

1шт.

24

82869674

MOLDING,88.5mm L

1шт.

25

84214464

CONTROL VALVE

Mid-mount Valve, 2-Slice

1шт.

25

84214464R

REMAN-HYD VALVE

Reman Mid-mount Valve, 2-Slice

1шт.

25

84214464C

CORE-VALVE HYD

Core Return Number

1шт.

26

84389501

HOSE ASSY.,10mm ID x 850mm L, SAE 100R2

Mid-mount Valve Pilot, Port R

1шт.

27

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Incl 28, 29

1шт.

28

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

87520009

FLEXIBLE HOSE

Mid-mount Valve Pilot Pressure Return To Tank

1шт.

31

47598701

HYDRAULIC HOSE

Mid-mount Valve Load Sense

1шт.

32

83964601

MOLDING,164mm L

1шт.

33

82036856

MOLDING,355mm L

1шт.

34

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

Incl 8, 35

1шт.

35

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

1шт.

36

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

37

84357300

STEP PLATE

Plate Protector, RH

1шт.

38

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.

39

47463291

DIA KIT, TRACTOR

Mid-mount Valve, 1st and 2nd Sections, Incl 1 - 38

1шт.

40

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 8, 41

1шт.

41

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 43
