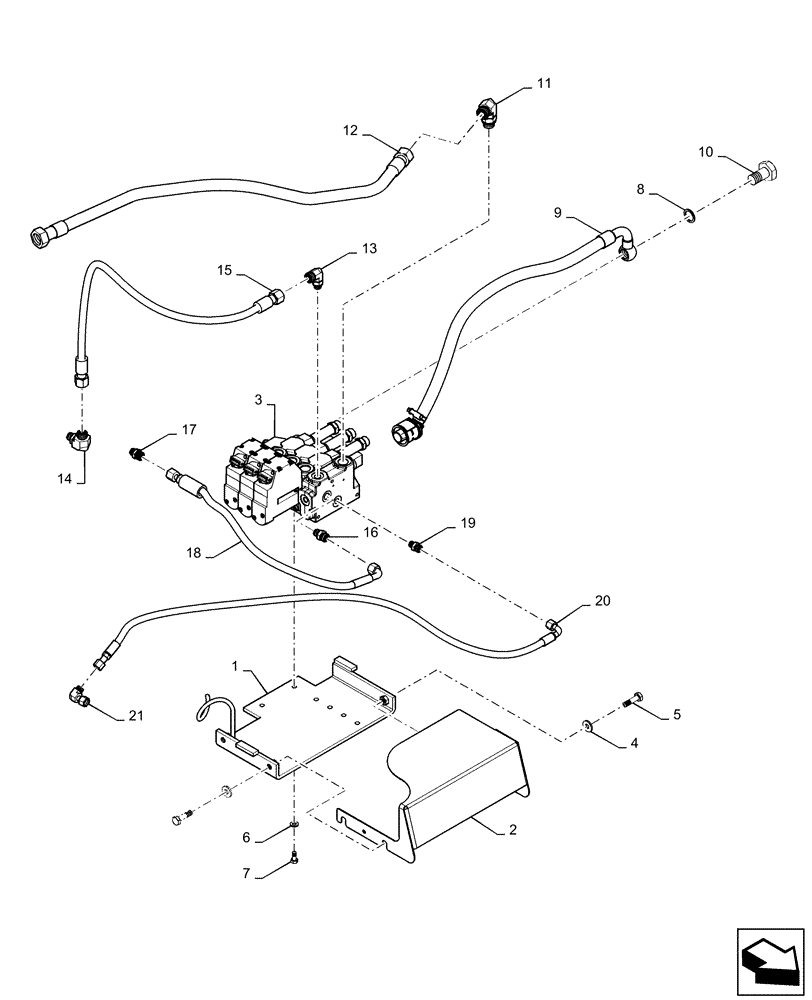

Запчасти Case IH MAGNUM 200 (35.204.BS[01]) - MID MOUNT VALVE, 3 CONTROL VALVES, MOUNTING, POWERSHIFT (35) - HYDRAULIC SYSTEMS

1

87598923

SUPPORT

Mid Mount Valve Bracket

1шт.

2

87736308

COVER ASSY

Mid Mount Valve

1шт.

3

84214465

CONTROL VALVE

Mid Mount, 3 Slice

1шт.

4

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

3шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

6

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

8

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

9

87736301

HOSE ASSY.,15.88mm ID x 800mm L, SAE 100R3

Return To Filter

1шт.

10

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

11

5194728

90 ELBOW

1шт.

12

87568645

HYDRAULIC HOSE,15.88mm ID x 1080mm L, SAE 100R2

Supply From Priority Valve

1шт.

13

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

1шт.

14

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

1шт.

15

87520009

FLEXIBLE HOSE

Pilot Pressure Return To Tank

1шт.

16

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

17

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

1шт.

18

84389501

HOSE ASSY.,10mm ID x 850mm L, SAE 100R2

Pilot Pressure Supply From Trans Ctrl

1шт.

19

5185045

HYD CONNECTOR

1шт.

20

47598701

HYDRAULIC HOSE

Load Sense To Priority Valve Tee

1шт.

21

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

1шт.
