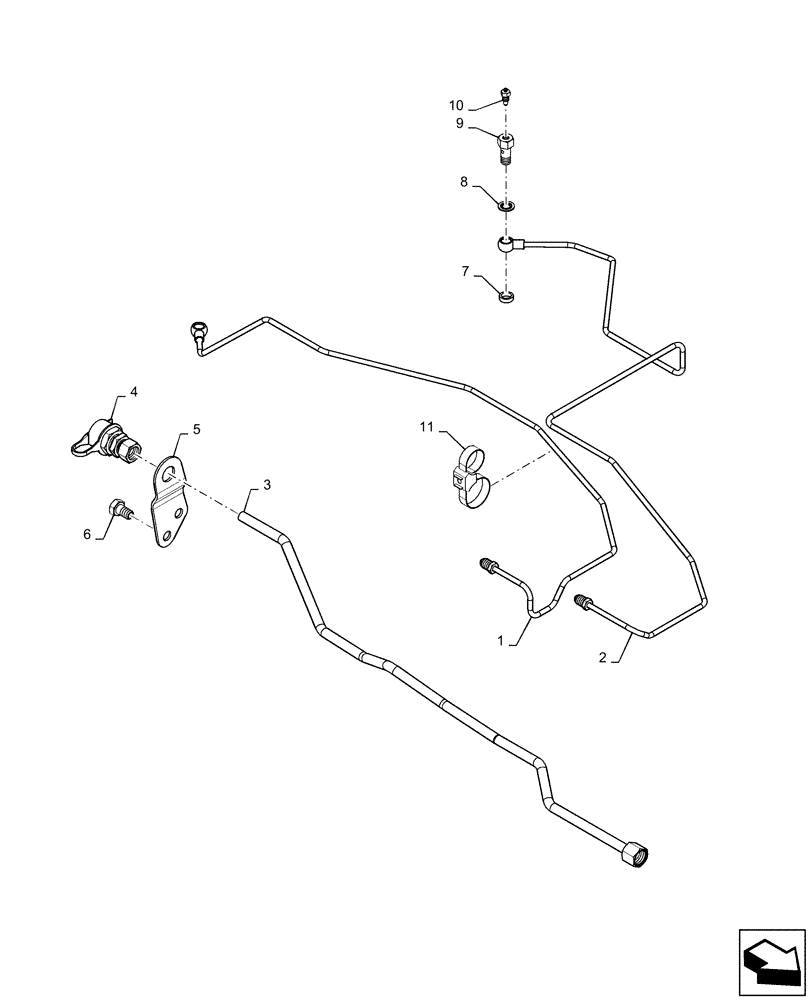

Запчасти Case IH MAGNUM 200 (33.220.AC[01]) - HYD. LINE, TRAILER BRAKE VALVE, FPS (33) - BRAKES & CONTROLS

1

47561788

HYD TUBE

RH Brake Pilot

1шт.

2

47561796

HYD TUBE

LH Brake Pilot

1шт.

3

47423736

HYD TUBE

Trailer Brake Valve

1шт.

4

44015354

QUICK MALE COUPLING

Union, Valve

1шт.

5

5196322

BRACKET

Trailer Brake Coupler

1шт.

6

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

Rectangular Section

2шт.

8

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

Banjo Fitting

2шт.

9

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

Banjo Bolt

2шт.

10

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

11

86991000

CLAMP

Dual Tie

2шт.
