Запчасти Case IH MAGNUM 200 (33.202.AR[02]) - VAR- 429326, 729571 - MASTER CYLINDER - POWERSHIFT (33) - BRAKES & CONTROLS

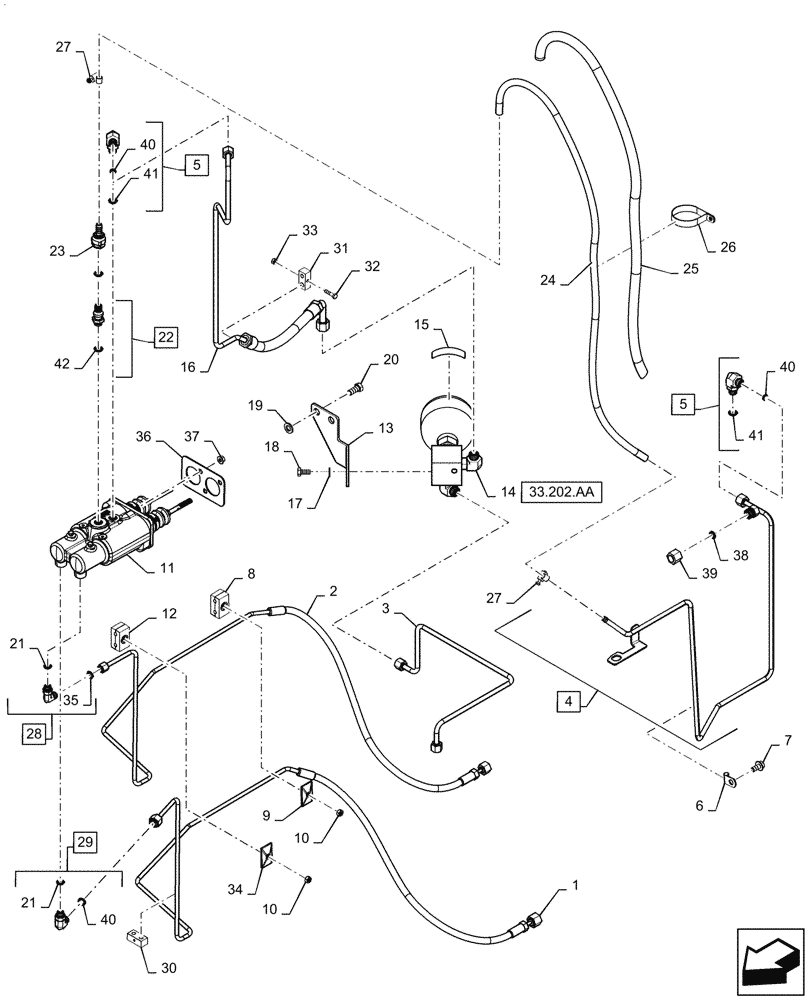

Схема запчастей Case IH MAGNUM 200 - (33.202.AR[02]) - VAR- 429326, 729571 - MASTER CYLINDER - POWERSHIFT (33) - BRAKES & CONTROLS
33.202.aa
22
31
21
35
20
3
15
33
42
9
23
27
40
19
8
37
10
29
16
6
13
4
30
26
14
24
21
1
41
38
39
17
41
32
28
11
10
18
36
5
40
12
5
34
2
25
27
40
7

Артикул

Название

Примечание

Количество

1

47514738

HYD TUBE

LH Brake Workport

1шт.

2

47448830

HYD TUBE

RH Brake Workport

1шт.

3

87746684

TUBE,.375" OD

Brake Supply to Accumulator, Serial Range: -ZERH08099

1шт.

3

47688260

HYD TUBE

Brake Supply to Accumulator, Start Serial: ZERH08100

1шт.

4

47628631

TUBE

Brake Drain, Powershift; Incl 38, 39

1шт.

5

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl 40, 41

2шт.

6

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

7

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

8

87473704

CLAMP

1шт.

9

384870A1

PLATE

Hose Clamp Cover

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

84152139

BRAKE VALVE

Master Cylinder With Booster

1шт.

11

84152139R

REMAN-HYD VALVE

Reman Master Cylinder With Booster

1шт.

11

84152139C

CORE-VALVE HYD

Core Return Number

1шт.

12

87473704

CLAMP

1шт.

13

84157285

BRACKET

Brake Accumulator, Years: -30-SEP-16

1шт.

13

48042920

BRACKET

Brake Accumulator, Start Year: 01-OCT-16

1шт.

14

87351567

BRAKE BOOSTER

Accumulator Block Assembly

1шт.

15

82029752

DECAL

Hydraulic

1шт.

16

84128605

HOSE

Accumulator to Brake Valve

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

21

86639042

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

22

82029114

FITTING,M16 x 1.5 x 51mm L

1шт.

23

87695284

END FITTING

Coupling, Brake Return; Incl 34 and 2 Viton Seals

1шт.

24

87404885

FUEL HOSE,9.53 mm ID x 1250.00 mm

1шт.

25

87443587

CONDUIT

1шт.

26

87495305

CLAMP,65mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

27

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

28

84390791

90 ELBOW

Incl 21, 35

1шт.

29

47127165

90 ELBOW

Incl 21, 40

1шт.

30

87755266

CLAMP

1шт.

31

87755267

CLAMP

1шт.

32

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

33

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

34

384870A1

PLATE

Hose Clamp Cover

1шт.

35

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

36

87751579

GASKET

Brake Valve

1шт.

37

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

38

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

701-905

CAP,13/16" - 16

1шт.

40

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

41

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

42

14437885

O-RING,13.30mm ID x 2.40mm

1шт.
