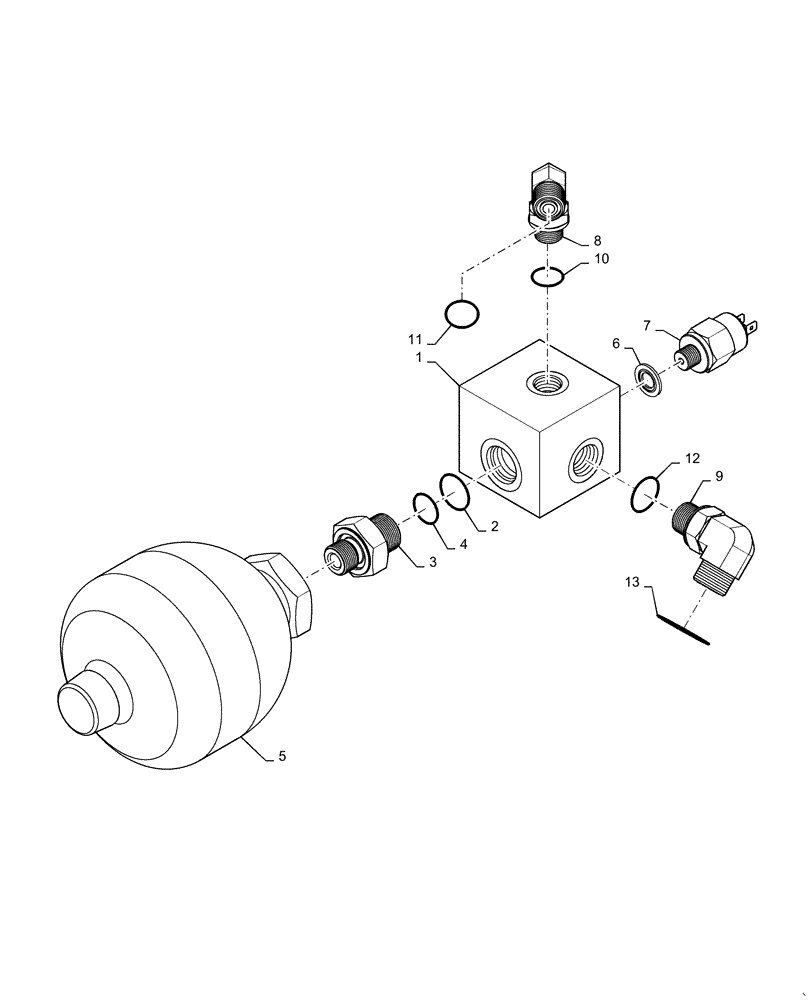

Запчасти Case IH MAGNUM 200 (33.202.AA) - ACCUMULATOR, BRAKES (33) - BRAKES & CONTROLS

1

5199762

BLOCK

Brake Accumulator

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

5186462

HYD CONNECTOR,M18 x 1.5 x 43.5mm

1шт.

4

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

5

5195043

ACCUMULATOR,0.75L

Brake, 0.7/60 10 Bar Precharge

1шт.

6

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

7

87384755

SWITCH ASSY

Brake Accumulator Pressure

1шт.

8

5199763

HYD CONNECTOR

Elbow, Incl 10, 11

1шт.

9

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

Elbow, Incl 12, 13

1шт.

10

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.
