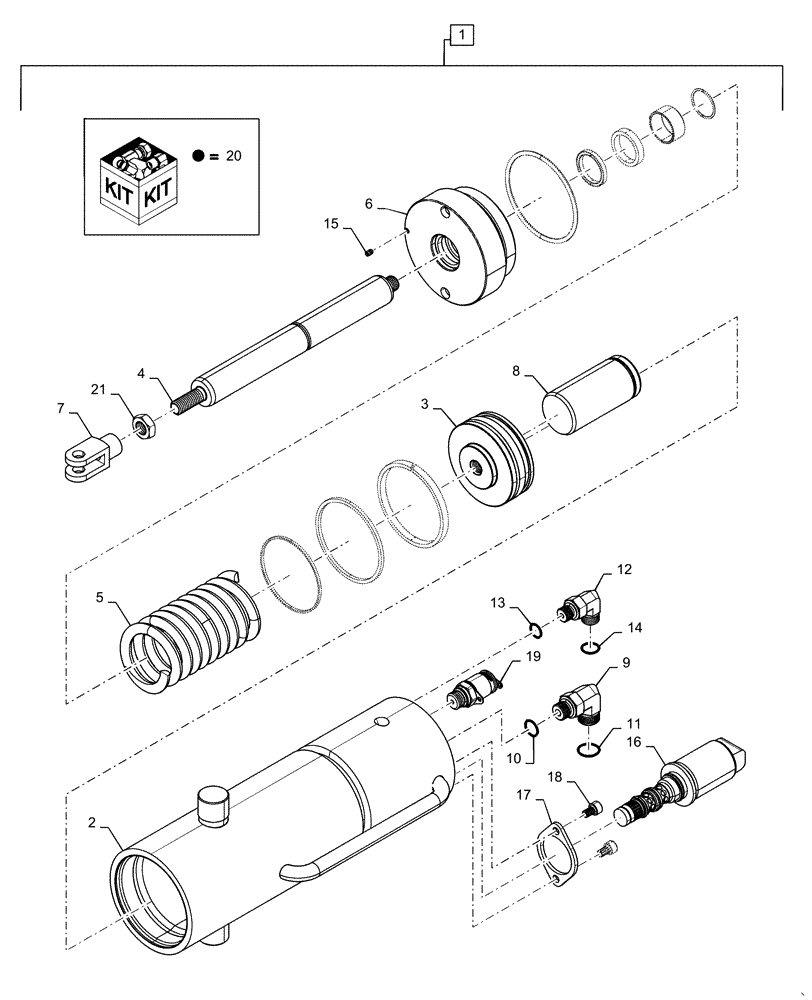

Запчасти Case IH MAGNUM 200 (33.110.AP[02]) - HYDRAULIC CYLINDER, PARKING BRAKE (33) - BRAKES & CONTROLS

1

47713880

HYDRAULIC CYLINDER

1шт.

2

47721743

TUBE

1шт.

3

47595615

PISTON

1шт.

4

47721778

PISTON ROD

1шт.

5

47637142

SPRING

1шт.

6

47721795

GLAND

1шт.

7

47730067

CLEVIS

1шт.

8

47721782

PLUNGER

1шт.

9

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

1шт.

10

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

84431522

ELBOW,90 Degree, 9/16"-18 ORFS x M12 x 1.5 ORB

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

15

86512754

SET SCREW

1шт.

16

84173878

SOLENOID

1шт.

17

87416968

COVER

1шт.

18

864-6010

HEX SOC SCREW,M6 x 10mm, Cl 8.8

2шт.

19

47721797

BLEEDER VALVE

1шт.

20

47662559

SEAL KIT

1шт.

21

16103614

THIN NUT,Thin, M12, 1.25 Pitch, Cl 04

1шт.
