Запчасти Case IH MAGNUM 200 (27.120.AI) - VAR- 728181, 728431 - AXLE CARRIER, REAR (27) - REAR AXLE SYSTEM

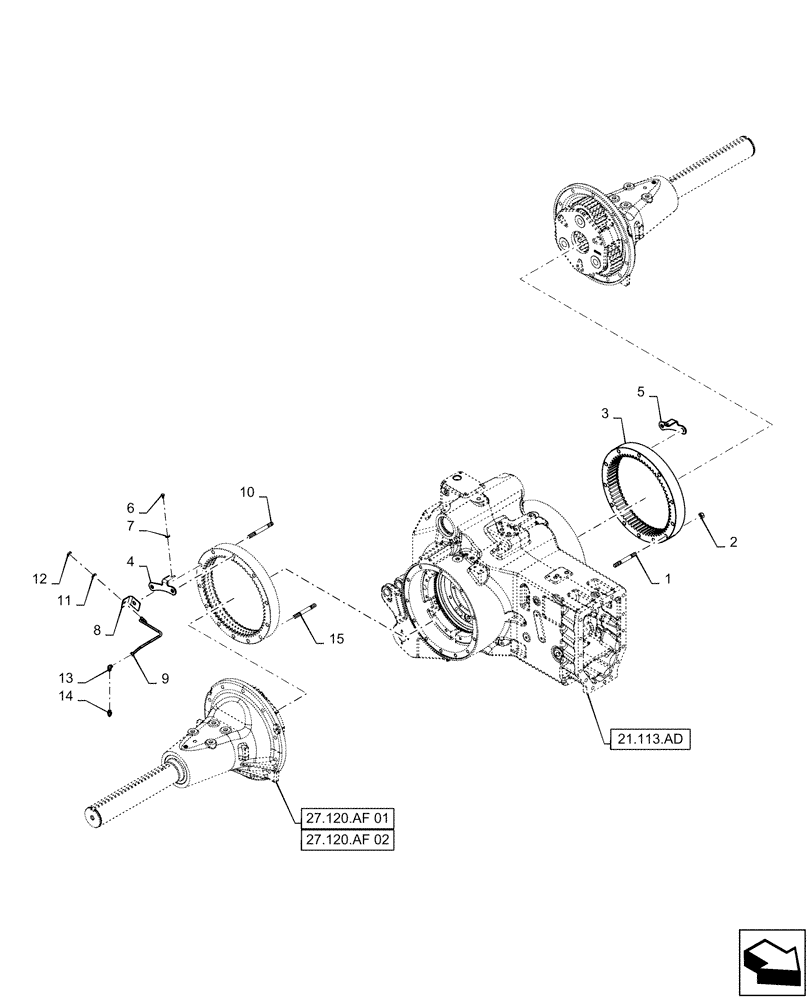

Схема запчастей Case IH MAGNUM 200 - (27.120.AI) - VAR- 728181, 728431 - AXLE CARRIER, REAR (27) - REAR AXLE SYSTEM
11
3
5
15
6
2
7
4
27.120.af 01
21.113.ad
10
8
13
27.120.af 02
1
14
9
12

Артикул

Название

Примечание

Количество

1

13973330

STUD,M16 x 1.5 x 32.00mm x 105.00mm, Cl 10.9, PLN

M16 x 1.5 x 105, Cl 10.9

16шт.

2

12164124

NUT,M16 x 1.5, Cl 8

26шт.

3

87307352

RING GEAR

Internal, Final Drive

2шт.

4

84488700

BRACKET

Cylinder Pipe, RH

1шт.

5

84488702

BRACKET

Cylinder Pipe, LH

1шт.

6

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

47502861

BRACKET

Rear Axle Grease Line

2шт.

9

87572760

HOSE ASSY.,6.4mm ID x 533mm L

Grease, Rear Axle

2шт.

10

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

6шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

12

F53473

LOCK NUT,1/8-27 NPSM

2шт.

13

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

2шт.

14

452051A1

ADAPTER,M10 x 1 ORB x 7/16" - 20 ORB

2шт.

15

13973330

STUD,M16 x 1.5 x 32.00mm x 105.00mm, Cl 10.9, PLN

M16 x 1.5 x 105, Cl 10.9, W/O Trailer Brakes

2шт.

15

13973630

STUD,M16 x 1.5 x 32mm x 120mm, Cl 10.9

With Trailer Brakes

2шт.

Выбрано товаров: 16
