1
47598195
HYDRAULIC PUMP
CCLS 74/63CC, Incl 32 - 34
1шт.
2
47131178
HYDRAULIC OIL FILTER
Oil
1шт.
3
14463580
O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro
2шт.
4
81869630
HEX SOC SCREW,M10 x 35mm, Cl 8.8
4шт.
5
12164021
NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND
2шт.
6
10730821
WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND
2шт.
7
13555334
STUD
M14 x 1.5 x 28 x 28 10.9 DAC
2шт.
8
9828498
O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro
1шт.
9
5186955
SPACER,84.5mm ID x 100.5mm OD x 6mm L
Piston Pump
1шт.
10
14461080
O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro
1шт.
11
14307621
HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd
2шт.
12
87323549
FLANGE
Assy, Piston Pump
1шт.
13
14306821
HEX SOC SCREW,M8 x 45mm, Cl 8.8
4шт.
14
84355757
HYDRAULIC PUMP,21.95 CC
1шт.
PRE-PRODUCTION TRACTORS BSN ZERH02500 MAY BE EQUIPPED WITH 84299334 25CC HYDRAULIC GEAR PUMP
1шт.
15
86625220
HEX SOC SCREW,M8 x 25mm, Cl 8.8
4шт.
16
47641380
VALVE
Flow Control w/TBV Incl 31
1шт.
17
5199218
BALL BEARING,50 mm ID x 80 mm OD x 16 mm
1шт.
18
5195239
GEAR
Driven Pump
1шт.
19
5186964
BALL BEARING,55mm ID x 100mm OD x 21mm W
1шт.
20
16323321
BOLT,Hex Lock, M10 x 1.25 x 20.00mm, 8R, ZND
1шт.
21
5196003
ADJUSTING PLATE
Adjusting
1шт.
22
16326621
BOLT,Hex Lock, M12 x 1.25 x 50.00mm, 8R, ZND
1шт.
23
5196041
RING NUT
Ferrule
1шт.
24
5195243
SHAFT,30mm OD x 101mm L
Intermediate
1шт.
25
26800120
TAPERED BEARING,30mm x 62mm x 21.25mm
2шт.
26
5195241
GEAR
Intermediate
1шт.
27
5196047
SPACER
1шт.
28
5169854
SPACER,30.5mm ID x 38mm OD x 11.8mm L
1шт.
29
5186886
GEAR
Drive Control Pump
1шт.
30
370006
SNAP RING,M40, Ext
2шт.
31
84355656
SEAL KIT
Flow Control Valve
1шт.
32
47511121
VALVE PRESSURE RELIE
1шт.
33
47616157
COMPENSATOR
Incl 34 and Mounting Bolts
1шт.
34
84209778
GASKET
Compensator
1шт.

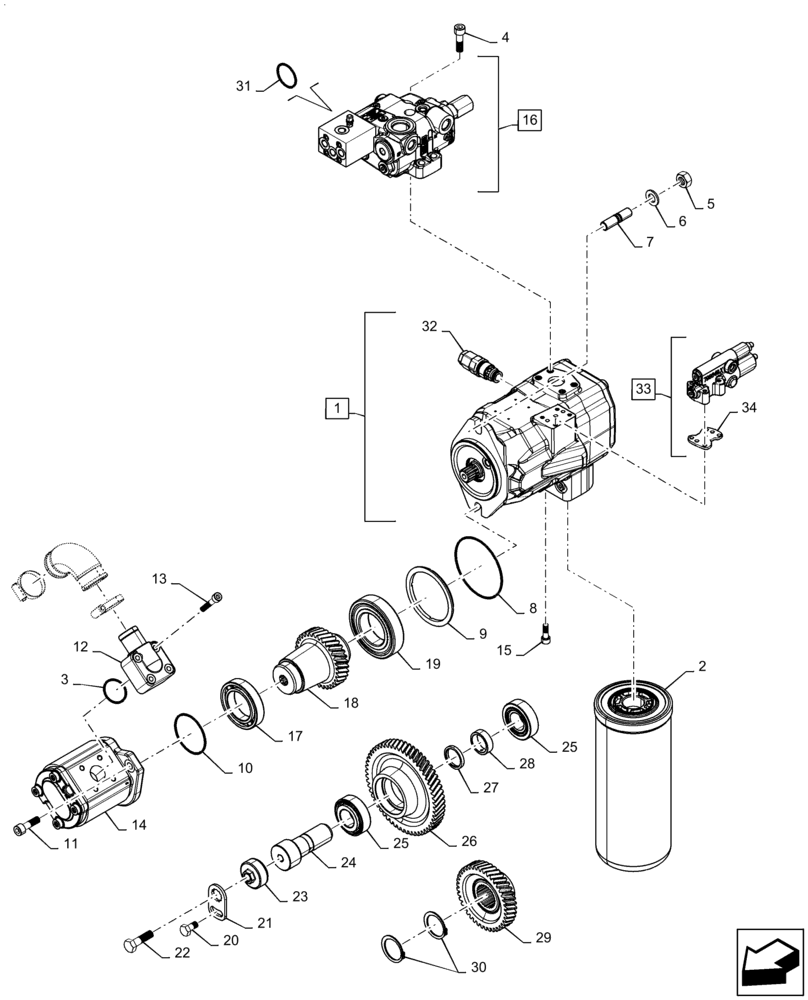

![Схема запчастей Case IH MAGNUM 200 - (21.900.AA[02]) - VAR- 429326, 729571 - DRIVING GEARS, HYDRAULIC PUMP - POWERSHIFT (21) - TRANSMISSION](https://partsell.ru/storage/images/caseih/5217501.png)
