Запчасти Case IH MAGNUM 200 (35.204.BT[02]) - VALVE SECTION, REMOTE CONTROL VALVE - ASN ZGRH01094 (35) - HYDRAULIC SYSTEMS

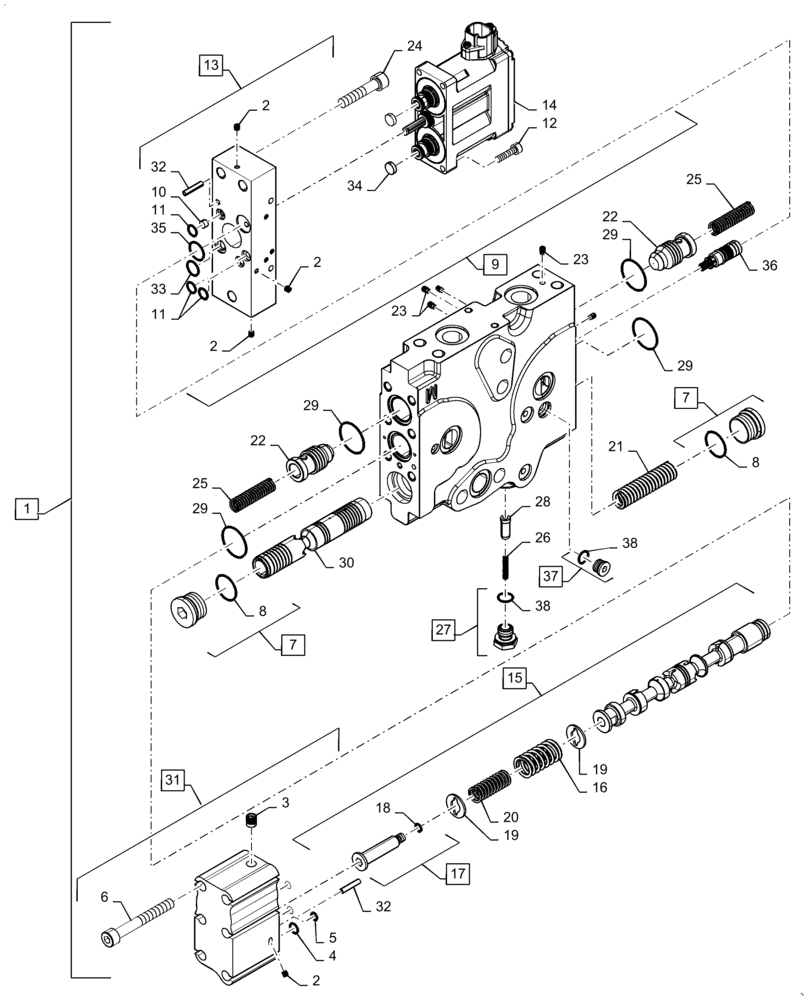

Схема запчастей Case IH MAGNUM 200 - (35.204.BT[02]) - VALVE SECTION, REMOTE CONTROL VALVE - ASN ZGRH01094 (35) - HYDRAULIC SYSTEMS
2
2
37
35
8
13
29
7
11
11
33
22
16
36
19
29
32
1
31
29
9
25
23
23
5
20
21
4
2
38
32
25
12
7
30
2
19
3
29
28
10
26
34
22
14
18
38
8
27
15
6
24
17

Артикул

Название

Примечание

Количество

1

47699489

VALVE SECTION

Assy, Main CCH; Incl 2 - 35

1шт.

1

47699496

VALVE SECTION

Assy, LH CCH; Incl 2 - 37

1шт.

2

282836A1

PLUG,4mm OD x 4mm L

Expansion 4MM

10шт.

3

282839A1

PLUG,8mm OD x 8.5mm L

Expansion

1шт.

4

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

5

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

6

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

7

86625138

PLUG,7/18" - 14

Spring Stop; Incl 8

2шт.

8

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

47735858

PILOT VALVE

Assy, Pilot Head; Incl 2, 10 - 14, 32 - 35

1шт.

10

87714123

FILTER

Filtration 100-150 Micron

2шт.

11

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

13

NSS

NOT SOLD SEPARAT

PLATE, Block Assy, Solenoid Adapter; Incl in 9

1шт.

14

NSS

NOT SOLD SEPARAT

SOLENOID, Pilot Head; Incl in 9

1шт.

15

47801801

SPOOL,19.04mm OD

Assy, Main; Incl 16 - 20

1шт.

16

47801793

SPRING,19.1mm OD x 39.34mm L

Centering Aux, Outer

1шт.

17

47801796

PLUG

Extension; Incl 18

1шт.

18

9626932

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

1шт.

19

47801792

WASHER,10.18mm ID x 20.5mm OD x 1.5mm Thk

Centering

2шт.

20

47801794

SPRING,13.34mm OD x 46.67mm L

Centering Aux, Inner

1шт.

21

47664791

SPRING,15.25mm OD x 82.58mm L

Compression

1шт.

22

47640123

POPPET

Lock Check

2шт.

23

84579020

PLUG,1.81" - 2.75"

Expander

5шт.

24

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

Aux Load Check Return

2шт.

26

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

27

87648607

PLUG,M12 x 1.5 ORB

Load Sense; Incl 38

1шт.

28

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

29

47422966

SEAL,23.52mm ID x 1.78mm Thk

O-Ring

4шт.

30

47839041

SPOOL,15.9mm ID x 18.63mm OD x 119mm L

Pressure Comp

1шт.

31

47733217

PILOT VALVE

Valve Body Assy, EH Pilot ; Incl 2 - 6; Incl in 1

1шт.

32

13902270

ROLL PIN,M3.5 x 20, Coiled

2шт.

33

84313724

O-RING,12.42mm ID x 1.78mm Thk

1шт.

34

47592733

FILTER STRAINER

60 Micron

2шт.

35

47711752

O-RING,1.78mm Thk x 9.25mm ID, -012, 80 Duro

1шт.

36

84307011

CHECK VALVE

2W Pilot Seat-Check

1шт.

37

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Right Valve Only; Incl 38

1шт.

38

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Main Valve

1шт.

38

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Right Valve Only

2шт.

Выбрано товаров: 40
