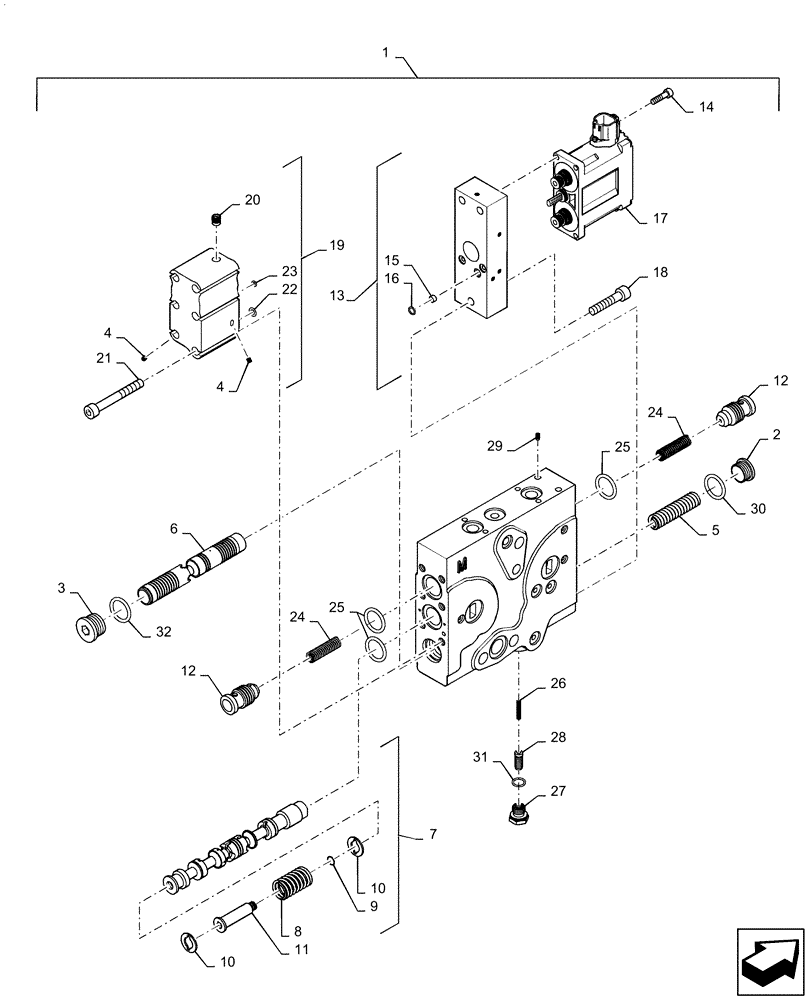

Запчасти Case IH MAGNUM 200 (35.204.BT[01]) - VALVE SECTION, REMOTE CONTROL VALVE - BSN ZGRH01094 (35) - HYDRAULIC SYSTEMS

1

47595041

VALVE

Main, Incl 2 - 29

1шт.

1

47595042

VALVE

LH, Incl 2 - 29

1шт.

1

47595043

VALVE

RH, Incl 2 - 29

1шт.

2

47426874

PLUG,7/8" - 14

Incl 30

1шт.

3

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 32

1шт.

4

282836A1

PLUG,4mm OD x 4mm L

Expansion 4mm

2шт.

5

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression

1шт.

6

47434055

SPOOL,15.9mm ID x 18.75mm OD x 133.6mm L

Pressure Comp

1шт.

7

47499455

SPOOL

Assy, Main, Incl 8 - 11

1шт.

8

47423002

SPRING,17.6mm OD x 45.86mm L

Centering Outer

1шт.

9

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

10

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

Centering

2шт.

11

47426760

PLUG,5/16" - 24

Incl 9

1шт.

12

47640123

POPPET

Lock Check

2шт.

13

47434056

SOLENOID

Assy Pilot Head; Incl 14 - 17

1шт.

13

47434056R

REMAN-SOLENOID

Assy Pilot Head

1шт.

13

47434056C

CORE-SOLENOID

Return Number

1шт.

14

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

15

87714123

FILTER

Filtration, 100-150 Micron

1шт.

16

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

17

NSS

NOT SOLD SEPARAT

Solenoid Incl in 13

1шт.

18

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

19

87329482

VALVE BODY

EH Pilot, Incl 4, 20 - 23

1шт.

20

282839A1

PLUG,8mm OD x 8.5mm L

1шт.

21

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

22

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

23

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

24

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

Aux Load Check Return

2шт.

25

47422966

SEAL,23.52mm ID x 1.78mm Thk

4шт.

26

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

27

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Incl 31

1шт.

28

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

29

84579020

PLUG,1.81" - 2.75"

Expander 4mm

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

32

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
