Запчасти Case IH MAGNUM 200 (35.204.AX[02]) - VALVE, MOTOR RETURN - ASM ZGRH01054 (35) - HYDRAULIC SYSTEMS

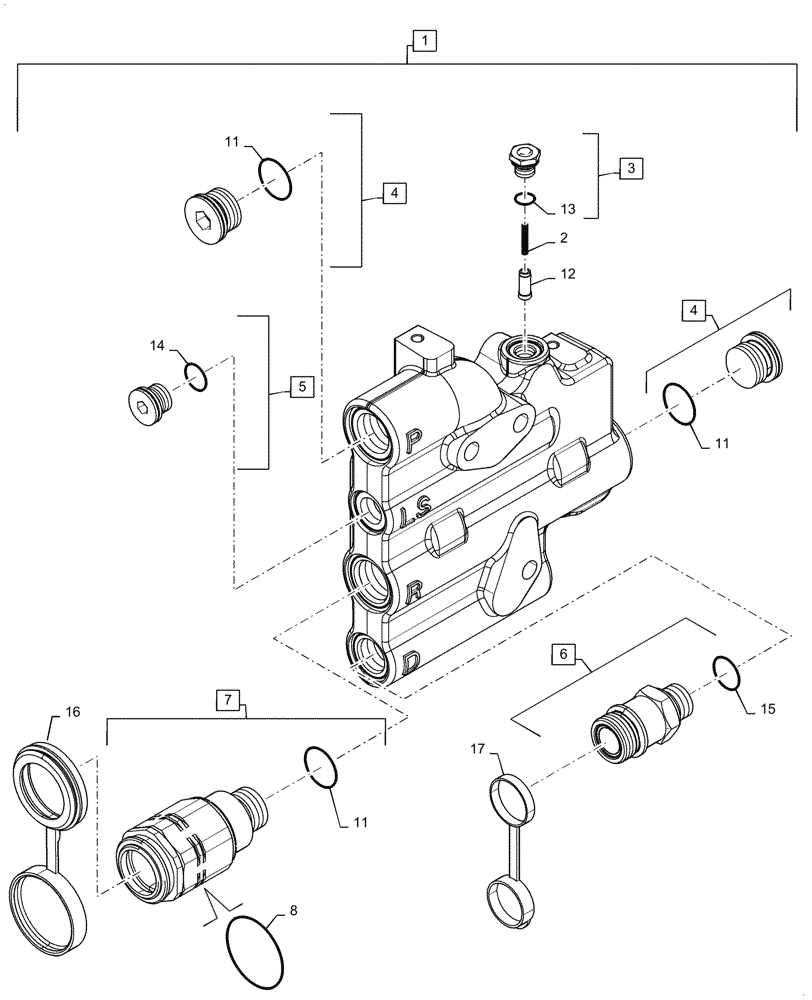

Схема запчастей Case IH MAGNUM 200 - (35.204.AX[02]) - VALVE, MOTOR RETURN - ASM ZGRH01054 (35) - HYDRAULIC SYSTEMS
12
4
13
17
2
16
15
11
6
1
3
4
11
8
5
11
7
14

Артикул

Название

Примечание

Количество

1

47886984

VALVE

Motor Return

1шт.

2

87648596

SPRING,3.81mm OD x 23.19mm L

Aux Signal Check

1шт.

3

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Incl 13

1шт.

4

221580A1

PLUG,M27 x 2 ORB

Incl 11

2шт.

5

221578A1

PLUG,M18 x 1.5 ORB

Incl 14

1шт.

6

84576610

COUPLING

Hydraulic Motor, Incl 15

1шт.

7

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

Incl 8 - 11

1шт.

8

445015A1

SEAL KIT

Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, Not Illustrated, Incl in 8

1шт.

10

NSS

NOT SOLD SEPARAT

BACKUP WASHER, Not Illustrated, Incl in 8

1шт.

11

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

3шт.

12

87648631

PIN,8mm OD x 19mm L

Poppet, Load Sense

1шт.

13

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

14

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

334216A1

CAP

3/4"

1шт.

17

380740A1

CAP

3/8"

1шт.

Выбрано товаров: 17
