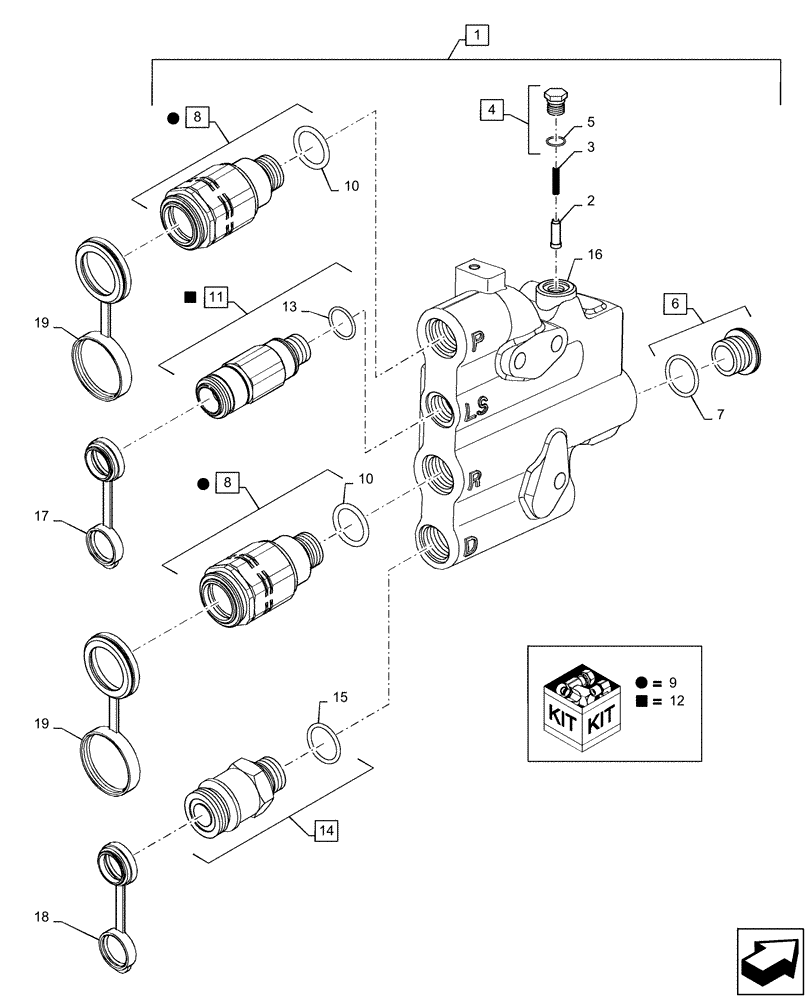

Запчасти Case IH MAGNUM 200 (35.204.AX[01]) - POWER BEYOND VALVE (35) - HYDRAULIC SYSTEMS

1

84539951

VALVE

ASSY, Power Beyond, Incl 2 - 16

1шт.

2

87648631

PIN,8mm OD x 19mm L

1шт.

3

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

4

87648607

PLUG,M12 x 1.5 ORB

Incl 5

1шт.

5

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

6

221580A1

PLUG,M27 x 2 ORB

Incl 7

1шт.

7

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

8

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4" Coupler, Incl 9 - 10

2шт.

9

445015A1

SEAL KIT

3/4", Incl O-Ring, Seal and Washer

2шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

11

294603A1

BODY

1/4" Coupler, Incl 12 - 13

1шт.

12

445014A1

SEAL KIT

1/4", Incl O-Ring and Washers

1шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

84576610

COUPLING

3/8" Female, Incl 15

1шт.

15

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

BODY Power Beyond Valve, Incl in 1

1шт.

17

334218A1

CAP

1/4"

1шт.

18

380740A1

CAP

3/8"

1шт.

19

334216A1

CAP

3/4"

2шт.
