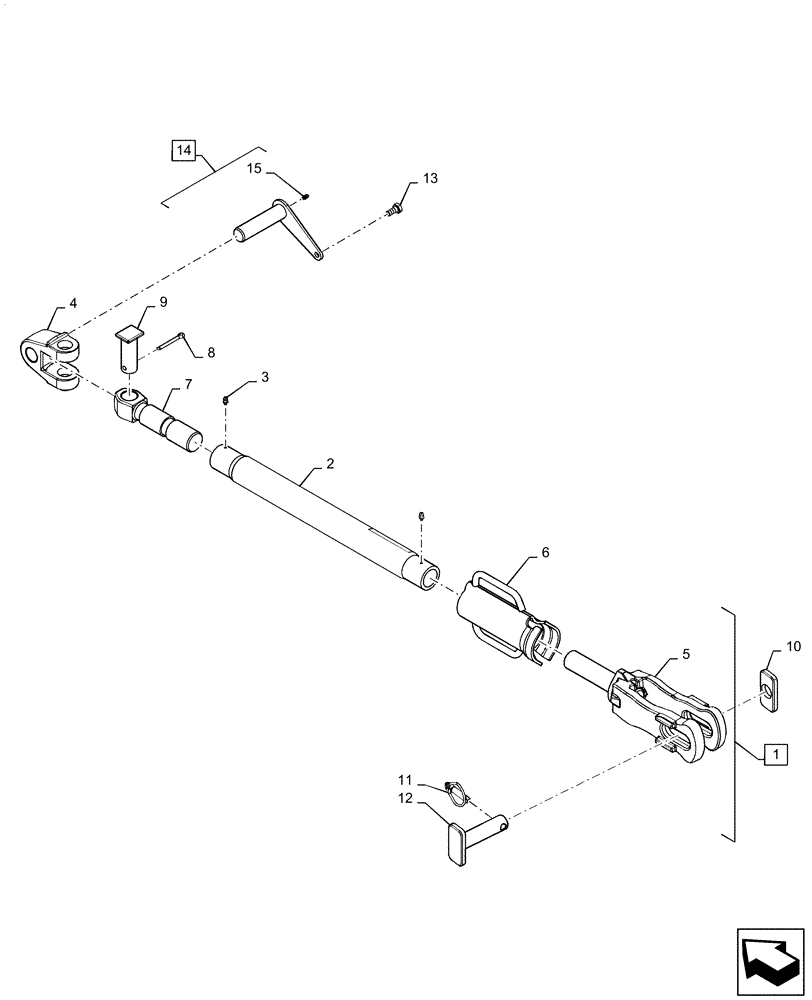

Запчасти Case IH MAGNUM 200 (35.124.AH[01]) - VAR- 420525, 728232 - HITCH, LIFT LINK (35) - HYDRAULIC SYSTEMS

1

84253931

LIFT LINK

Incl 2 - 9

1шт.

2

84253955

TUBE,M36 x 3

Lift Link

1шт.

3

5197863

LUBE NIPPLE,M6 x 1

M6 x 1 Threaded

1шт.

4

5197826

YOKE

Swivel

1шт.

5

5197821

YOKE,M36 x 3

Fork Assy

1шт.

6

84253957

TURNBUCKLE

Handle, Lift Link

1шт.

7

5197825

LIFT LINK END ASSY,M36 x 3

Lift Link

1шт.

8

10797801

COTTER PIN,M6.3 x 50.00mm

1шт.

9

5197827

PIN

Lift Link

1шт.

10

5197822

PLATE

Lift Link

1шт.

11

47125579

LINCH PIN,11.5mm OD

Lift Link

1шт.

12

5197820

PIN,28mm OD x 117mm L

Clevis

1шт.

13

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

1шт.

14

87317296

PIN,28mm OD x 122.5mm L

Lift Link; Incl 15

1шт.

15

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.
