Запчасти Case IH MAGNUM 200 (35.116.AH[02]) - VAR- 420104, 420105 - LIFT CYLINDER, HITCH - 90MM DIA (35) - HYDRAULIC SYSTEMS

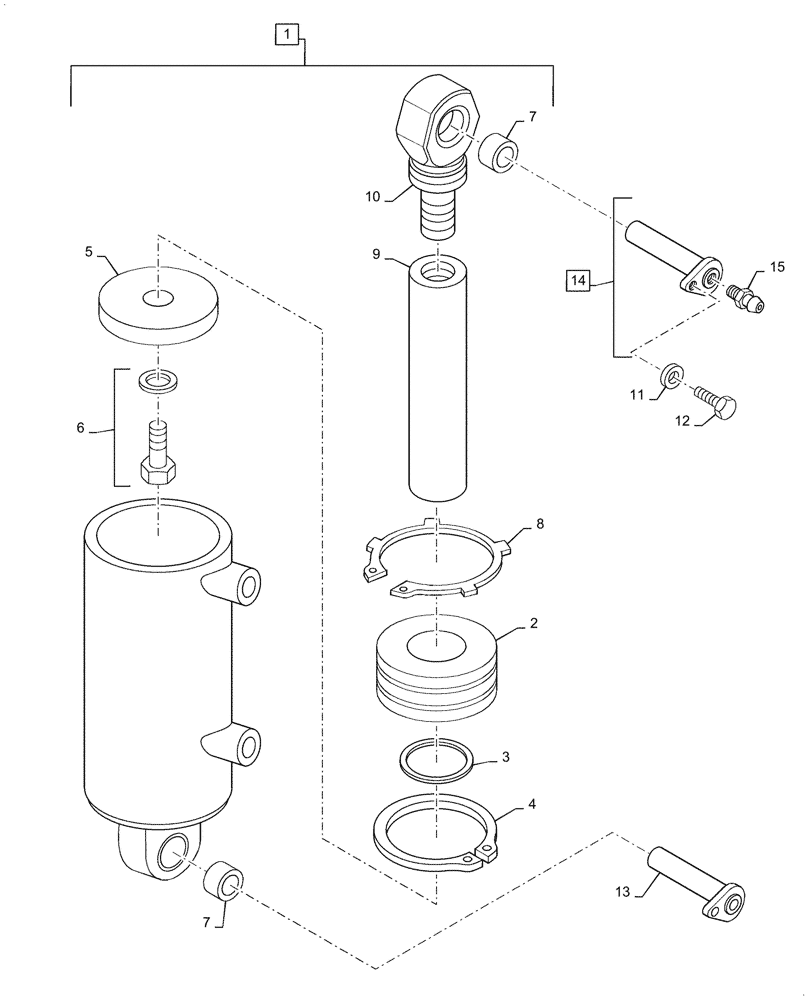

Схема запчастей Case IH MAGNUM 200 - (35.116.AH[02]) - VAR- 420104, 420105 - LIFT CYLINDER, HITCH - 90MM DIA (35) - HYDRAULIC SYSTEMS
14
15
3
9
8
7
11
13
2
7
10
4
12
1
5
6

Артикул

Название

Примечание

Количество

1

47136721

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

ASSY, Three-Point Hitch Lift, 90 mm, Incl 2 - 10

2шт.

2

47137402

CYLINDER HEAD

1шт.

3

47137616

SEAL KIT

1шт.

4

47137401

SNAP RING

1шт.

5

87316888

PISTON

1шт.

6

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

7

5198652

BUSHING

2шт.

8

47137400

RING

1шт.

9

87316890

ROD

1шт.

10

5198581

EYE

1шт.

11

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

12

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.

13

5185964

PIN,34.7mm OD x 132mm L

2шт.

14

5186171

PIN

ASSY, Incl 15

2шт.

15

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

Выбрано товаров: 15
