Запчасти Case IH MAGNUM 200 (35.116.AH[01]) - VAR- 420525, 728232 - LIFT CYLINDER, HITCH - 110MM DIA (35) - HYDRAULIC SYSTEMS

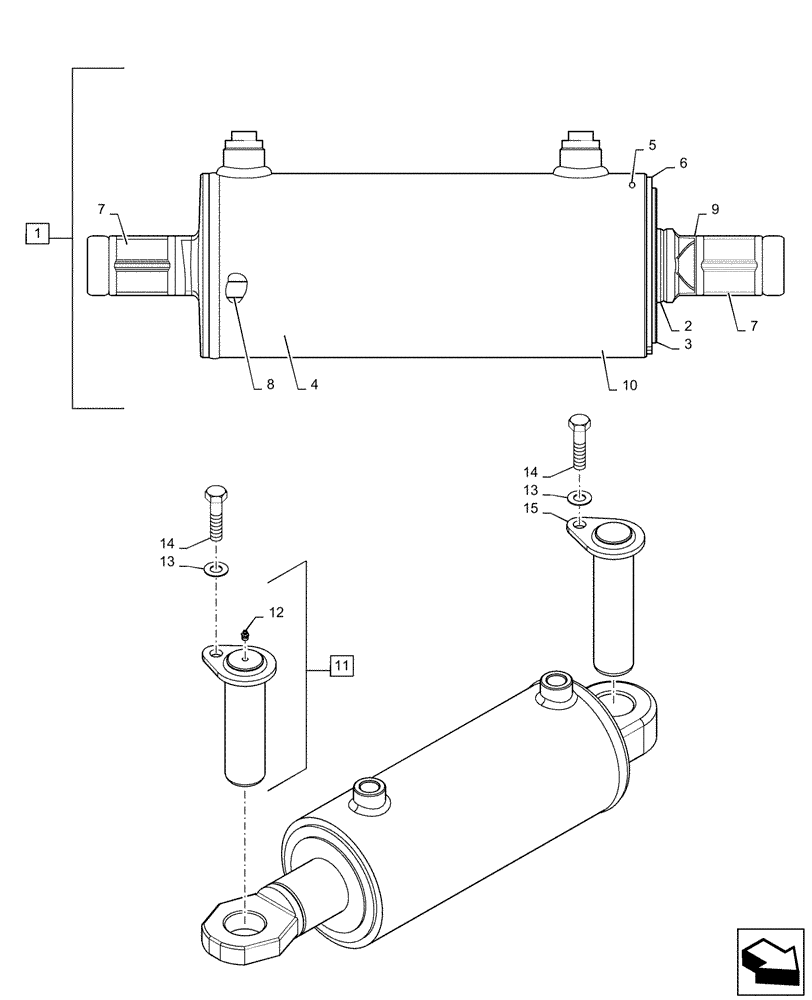

Схема запчастей Case IH MAGNUM 200 - (35.116.AH[01]) - VAR- 420525, 728232 - LIFT CYLINDER, HITCH - 110MM DIA (35) - HYDRAULIC SYSTEMS
4
15
10
3
13
7
14
1
2
9
8
7
5
14
12
6
13
11

Артикул

Название

Примечание

Количество

1

87521075

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 200mm Stroke

Hitch, 110MM DIA; Incl 2 - 10

1шт.

2

87532114

PISTON ROD

Hitch Cylinder

1шт.

3

87532115

JACK HEAD

Hitch Cylinder

1шт.

4

87532107

JACK PISTON

Hitch Cylinder

1шт.

5

87532106

SNAP RING

Hitch Cylinder

1шт.

6

87532094

RING

Retaining, Hitch Cylinder

1шт.

7

5198652

BUSHING

Hitch Cylinder

2шт.

8

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1 x 2.5"

1шт.

9

5198581

EYE

Hitch Cylinder

1шт.

10

87532092

SEAL KIT

Hitch Cylinder

1шт.

11

5186171

PIN

Hitch Cylinder; Incl 12

2шт.

12

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

13

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

14

82034728

SET SCREW,Hex, M10 x 1.25 x 22mm, Cl 8.8

4шт.

15

5185964

PIN,34.7mm OD x 132mm L

Hitch Cylinder Lift

2шт.

Выбрано товаров: 15
