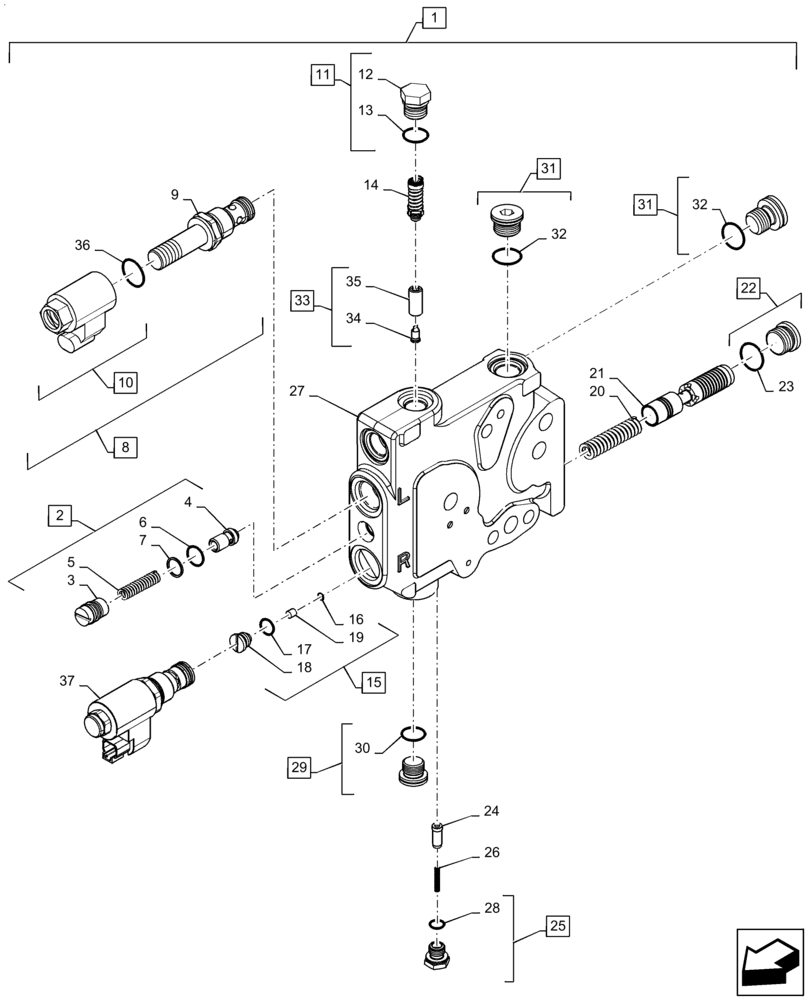

Запчасти Case IH MAGNUM 200 (35.114.AF[02]) - VALVE SECTION, HITCH - ASN ZFRH05054 (35) - HYDRAULIC SYSTEMS

1

47887018

VALVE SECTION

Assy, Hitch, Incl 2 - 37

1шт.

2

1542563C1

KIT

Incl 3 - 7

1шт.

3

1994580C1

PLUG

Logic Check

1шт.

4

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

Logic Check

1шт.

5

1994581C1

SPRING,6.1mm OD x 31.1mm L

Logic Check

1шт.

6

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

7

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back-Up

1шт.

8

47379783

SOLENOID,1.8 Ohm, 100 Hz

L, Incl 9 - 10

1шт.

9

47379782

SOLENOID,M19 x 1 x 115mm L

Cartridge Flow Control

1шт.

10

87608473

COIL

Proportional Flow Control, Incl 36

1шт.

11

385520A1

PLUG,Hex, 13.05mm ID x 22.23mm OD x 23.5mm L

Incl 12 - 13

1шт.

12

385521A1

PLUG

Check Valve

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

337425A3

VALVE, PRESSURE RELI

EF 3200 PSI Cartridge

1шт.

15

87619813

CHECK VALVE,1/2" - 20

Incl 16 - 19

1шт.

16

100-2125

SNAP RING,M25, Int

1шт.

17

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

Check Valve; Incl in 15

1шт.

19

NSS

NOT SOLD SEPARAT

Poppet; Incl in 15

1шт.

20

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression

1шт.

21

84187247

SPOOL,15.9mm ID x 19.32mm OD x 96mm L

1шт.

22

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

25

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Incl 28

1шт.

26

87648596

SPRING,3.81mm OD x 23.19mm L

Load Sense

1шт.

27

NSS

NOT SOLD SEPARAT

Valve Body, Incl in 1

1шт.

28

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

29

221578A1

PLUG,M18 x 1.5 ORB

Incl 30

1шт.

30

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31

221579A1

PLUG,M22 x 1.5 ORB

Incl 32

2шт.

32

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

33

87518992

PLUG

Incl 34 - 35

1шт.

34

133519C1

SCREEN

1шт.

35

NSS

NOT SOLD SEPARAT

Plug, Orifice; Incl in 33

1шт.

36

86637739

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

2шт.

37

47833382

SOLENOID,1.8 Ohm, 250 bar

R, Hitch Raise

1шт.
