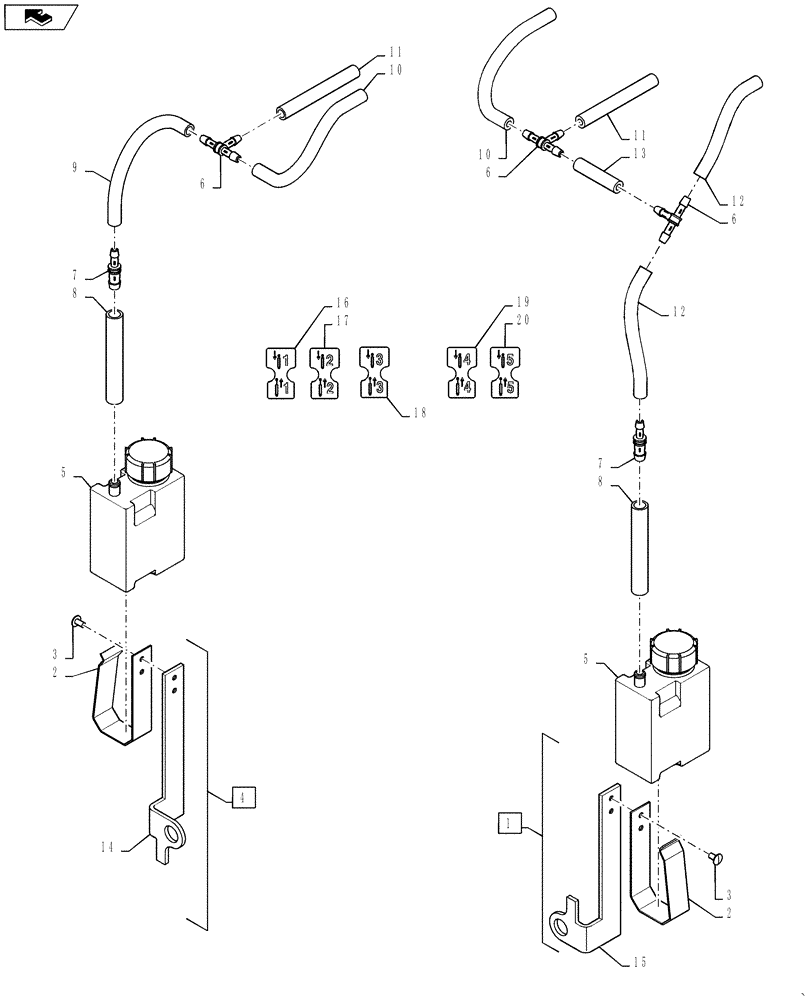

Запчасти Case IH MAGNUM 200 (35.106.AS[01]) - REMOTE VALVE SPILLAGE (35) - HYDRAULIC SYSTEMS

1

84536828

BRACKET, SUPPORTING

Assy, Oil Collection, Incl 2 - 3, 14

1шт.

2

87353707

BRACKET

Coupler Spillage

2шт.

3

449-36

RIVET,Truss Hd, 3/16" x 3/8"

4шт.

4

84536826

BRACKET, SUPPORTING

Assy, Oil Collection, Incl 2 - 3, 15

1шт.

5

87347354

RESERVOIR, HYDRAULIC

300mL

2шт.

6

1289479C1

TEE

1/4 Hose Barbed

3шт.

7

400192A1

REDUCER FITTING

Connector

2шт.

8

84272204

HOSE,9.52mm ID x 100mm L, SAE 30R7

Tank To CRB

2шт.

9

84544820

HOSE

Radiator Deaeration

1шт.

10

84544821

HOSE

Radiator Deaeration

2шт.

11

84217492

HOSE

Tank To CRB

2шт.

12

84544822

HOSE

Radiator Deaeration

2шт.

13

84544848

HOSE

Hydraulic

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket

1шт.

15

NSS

NOT SOLD SEPARAT

Bracket

1шт.

16

84233647

DECAL

Remote 1

1шт.

17

84233648

DECAL

Remote 2

1шт.

18

84233649

DECAL

Remote 3

1шт.

19

84233650

DECAL

Remote 4

1шт.

20

84233653

DECAL

Remote 5

1шт.
