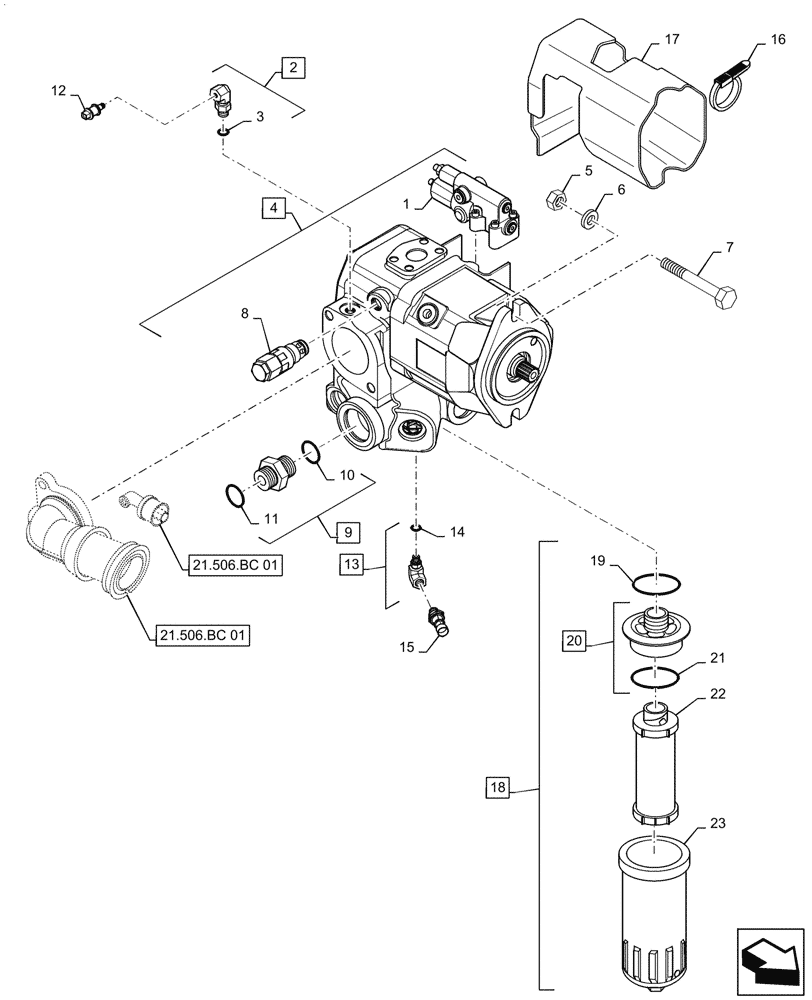

Запчасти Case IH MAGNUM 200 (35.105.AA[01]) - VAR- 420104, 420105 - CHARGE PUMP - CVT (35) - HYDRAULIC SYSTEMS

1

47616157

COMPENSATOR

1шт.

2

87667432

HYD CONNECTOR,M10 x 1 x M14 x 1.5

M14 x 1.5, Incl 3

1шт.

3

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

4

84353100

HYDRAULIC PUMP,63 CC

Charge Pump, 63cc, Incl 1, 8

1шт.

4

84353100R

REMAN-HYD PUMP

Charge Pump, 63cc, Incl 1, 8

1шт.

4

84353100C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

5

12164024

NUT,Hex, M14 x 1.5mm Pitch, Cl 10, DAC

M14 x 1.5

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

15877021

BOLT,Hex, M14 x 1.5 x 110mm, Cl 8.8

2шт.

8

47511121

VALVE PRESSURE RELIE

1шт.

9

86579685

HYD CONNECTOR,1 11/16"-12 ORFS x M42 x 2 ORB

Incl 10 - 11

1шт.

10

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

11

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

12

82025340

RESTRICTION SWITCH

Vacuum

1шт.

13

84247208

HYD CONNECTOR,1/4" - 18 DRYSEAL NPTF - M10 x 1

Incl 14

1шт.

14

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

15

87564684

SWITCH ASSY

Charge Pump Oil Pressure Sender

1шт.

16

14569387

HOSE CLIP

5шт.

17

84212218

NOISE PROTECTION

1шт.

18

84341286

HYDRAULIC OIL FILTER,289.5mm L

Hydraulic Pump, Original Equipment (First 50 Hours)

1шт.

At 50 hours service with 84417137 Filter Bowl, 84417139 Element, and 84550359 O-Ring. After that, service with 84417139 Element, and 84417142 O-Ring.

1шт.

19

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

1шт.

20

84474899

ADAPTER

Incl 21

1шт.

21

84417142

O-RING,3.53mm Thk x 78.97mm ID

1шт.

22

84417139

ELEMENT,267.5mm L, 11 Micron

Service Only

1шт.

23

84417137

FILTER BOWL

Service Only

1шт.
