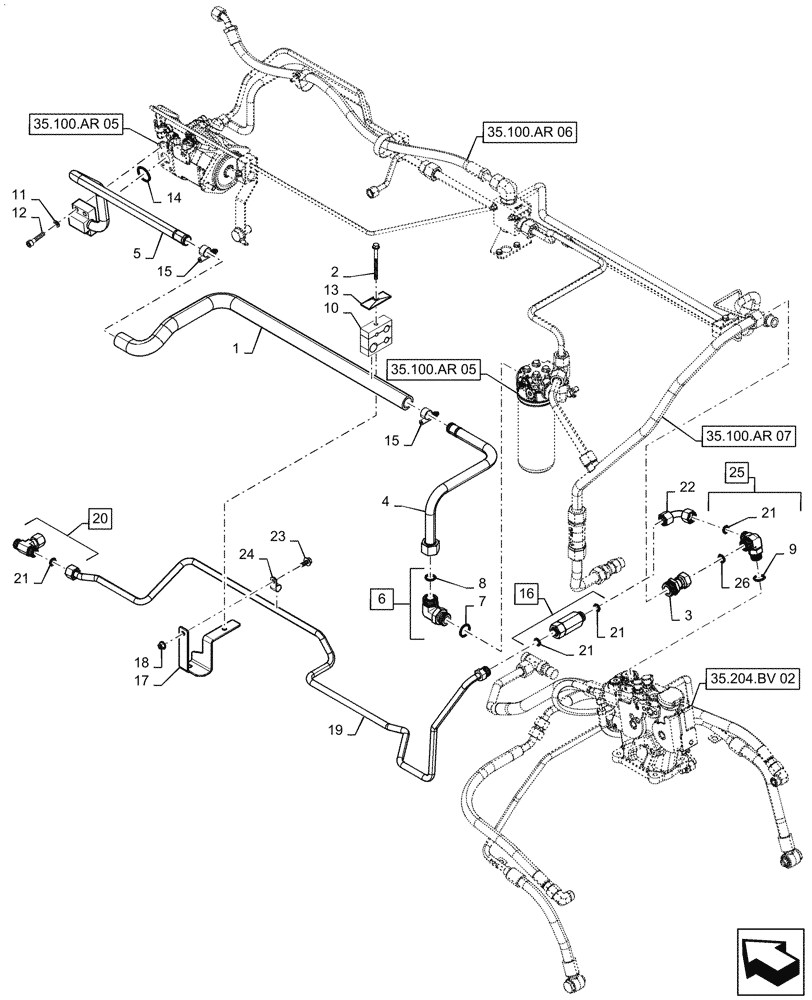

Запчасти Case IH MAGNUM 200 (35.100.AR[08]) - CONTROL VALVE OIL SUPPLY LINES AND FITTINGS, TWIN FLOW - CVT - ASN ZFRH01001 (35) - HYDRAULIC SYSTEMS

1

47628546

HOSE

Suction, CVT

1шт.

2

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

1шт.

3

84332689

HYD CONNECTOR

Tube End Expander

1шт.

4

47587953

TUBE

Suction Filter Outlet

1шт.

5

47628339

TUBE

Suction Front

1шт.

6

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 7, 8

1шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

8

87473574

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

9

14438185

O-RING,24mm ID x 3mm

1шт.

10

47617626

CLAMP

1шт.

11

892-11010

LOCK WASHER,M10

4шт.

12

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

4шт.

13

1186005

PLATE

1шт.

14

14464080

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

15

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

2шт.

16

47929011

HYDRAULIC OIL FILTER

With Check Valve, Incl 21

1шт.

17

47612610

BRACKET

Tube Clamp Support

1шт.

18

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

19

47681864

TUBE

Lube From Remotes, CVT

1шт.

20

5197110

TEE,1"-14 UNS

Incl 21

1шт.

21

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

22

84546907

TUBE

Lube From Remotes

1шт.

23

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

24

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

25

87519151

HYD CONNECTOR,1"3/16-12 x M27 x 2 x 1"14

Incl 9, 21, 26

1шт.

26

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.
